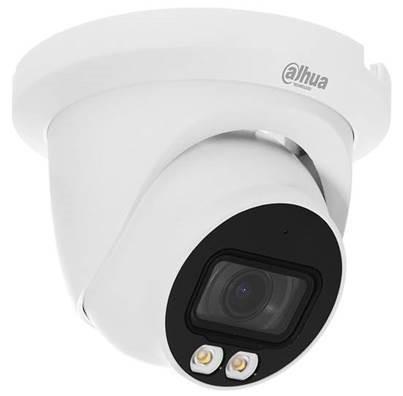

NET CAMERA 4MP LED EYEBALL/HDW5449TMSELED0280BS2 DAHUA

> 4-MP 1/1.8 CMOS image sensor, low illuminance, high image definition.
> Outputs max. 4 MP (2688 × 1520) @30 fps.
> Built-in warm light and the max. illumination distance is 30 m.
> ROI, SVC, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata,IVS, face detection, smart object detection, and people counting, etc.
> Supports max. 512 G Micro SD card, built-in Mic.
> 12 VDC/PoE power supply; ePoE.
> IP67 protection.
> SMD 3.0.

Description

> 4-MP 1/1.8 CMOS image sensor, low illuminance, high image definition.
> Outputs max. 4 MP (2688 × 1520) @30 fps.
> Built-in warm light and the max. illumination distance is 30 m.
> ROI, SVC, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata,IVS, face detection, smart object detection, and people counting, etc.
> Supports max. 512 G Micro SD card, built-in Mic.
> 12 VDC/PoE power supply; ePoE.
> IP67 protection.
> SMD 3.0.

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-5-Series/Full-color/IPC-HDW5449TM-SE-LED=S2

Camera design

Eyeball

Network Camera Type

HDTV/Megapixel/Outdoor

Pixel Resolution

4 Mega Pixel

IR Illumination

Yes

Sensor size

1/1.8

Microphone

Built-in

Lens Mount

M16

Effective pixels

2688 (H) × 1520 (V)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

RJ45

1

Supports card capacities up to

512GB

Power options

12V/PoE

Power supply requirements

12 VDC /PoE (802.3af)/ePoE

Power consumption

9.8 Watts

Environment

Outdoor

Operating temperature range

–40 °C to +60 °C

Colour

White

Dimensions

Φ122.0 mm × 104 mm

Units per Shipping Box

1

Shipping Box Depth

14 cm

Shipping Box Height

13 cm

Shipping Box Weight

0.73 kg

Shipping Box Width

14.5 cm

Unit Calculated Volume

0.002639 cubm

Product Net Weight

0.494 kg

Unit Calculated Weight

0.73 kg

Unit Box Width

0.145

Unit Box Length

0.14

Unit Box Height

0.13

Full Description Line

Type HDTV/Megapixel/Outdoor|Pixel Resolution 4 Mega Pixel|IR Illumination|Sensor size 1/1.8|Microphone Built-in|Lens Mount M16|Effective pixels 2688 (H) × 1520 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xRJ45|Supports card capacities up to 512GB|Power options PoE/12V|Power supply requirements 12 VDC /PoE (802.3af)/ePoE|Environment Outdoor|Operating temperature range –40 °C to +60 °C|Colour White|Dimensions Φ122.0 mm × 104 mm

Category Code

FNC
