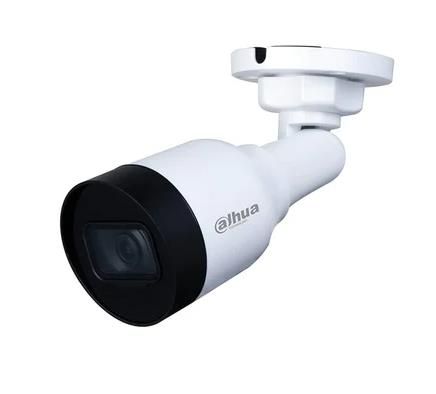

NET CAMERA 5MP IR BULLET/IPC-HFW1530S-0280B-S6 DAHUA

- 1/2.7” 5Megapixel progressive CMOS, 2880 × 1620 @20FPS
- Minimum illumination: 0.03 Lux @ F2.0 (Color, 30 IRE), 0.003 Lux @ F2.0 (B/W, 30 IRE)
- True Day/Night (ICR), BLC/ HLC/ DWDR(120dB) / 3D DNR
- Fixed 2.8 mm Lens (106°)
- Up to 30 meters IR Illumination, Smart IR
- H.265+/H.265/H.264+/H.264 encoding, ONVIF (Profile S/Profile T); CGI; P2P; Genetec; Milestone
- Bullet design, metal shell, IP67, -40°C~+60°C, PoE / 12VDC power 6W
- Free IP monitoring software available

Description

- 1/2.7” 5Megapixel progressive CMOS, 2880 × 1620 @20FPS
- Minimum illumination: 0.03 Lux @ F2.0 (Color, 30 IRE), 0.003 Lux @ F2.0 (B/W, 30 IRE)
- True Day/Night (ICR), BLC/ HLC/ DWDR(120dB) / 3D DNR
- Fixed 2.8 mm Lens (106°)
- Up to 30 meters IR Illumination, Smart IR
- H.265+/H.265/H.264+/H.264 encoding, ONVIF (Profile S/Profile T); CGI; P2P; Genetec; Milestone
- Bullet design, metal shell, IP67, -40°C~+60°C, PoE / 12VDC power 6W
- Free IP monitoring software available

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Dedicated-Products/Project-Exclusive/Network-Cameras/IPC-HFW1530S-S6

Model

IPC-HFW1530S-0280B-S6

Camera design

Bullet

Network Camera Type

Fixed/Outdoor

Pixel Resolution

5 Mega Pixel

Focal Length

2.8mm

IR Illumination

Yes

Sensor size

1/2.7 CMOS

Microphone

Built-in

Lens Mount

M12

Min. Illumination

0.003 Lux

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

RJ45

1

Power options

12V/PoE

Power supply requirements

12V DC/PoE (802.3af)

Power consumption

6 Watts

Environment

Outdoor

Operating temperature range

-40°C~+60°C

Dimensions

162.1 mm × Φ70.1 mm

Units per Shipping Box

1

Shipping Box Depth

21 cm

Shipping Box Height

11 cm

Shipping Box Weight

0.441 kg

Shipping Box Width

10 cm

Unit Calculated Volume

0.00231 cubm

Product Net Weight

0.32 kg

Unit Calculated Weight

0.441 kg

Unit Box Width

0.1

Unit Box Length

0.21

Unit Box Height

0.11

Full Description Line

Type Fixed/Outdoor|Pixel Resolution 5 Mega Pixel|Focal Length 2.8mm|IR Illumination|Sensor size 1/2.7 CMOS|Microphone Built-in|Lens Mount M12|Min. Illumination 0.003 Lux|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xRJ45|Power options PoE/12V|Power supply requirements 12V DC/PoE (802.3af)|Environment Outdoor|Operating temperature range -40°C~+60°C|Dimensions 162.1 mm × Φ70.1 mm
