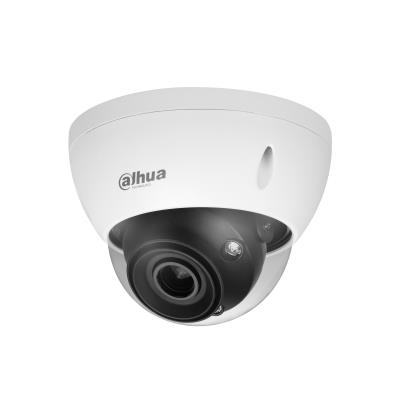

NET CAMERA 5MP IR DOME/HDBW5541E-ZE-27135-S3 DAHUA

5MP IR Vari-focal Vandal-proof Dome WizMind Network Camera

> 5-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5MP (2960×1668) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card, built-in MIC.
> 24V AC/12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection.
> SMD 3.0.
> Focal Length 2.7 mm–13.5 mm, Field of View H: 114°–32°

Description

5MP IR Vari-focal Vandal-proof Dome WizMind Network Camera

> 5-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5MP (2960×1668) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card, built-in MIC.
> 24V AC/12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection.
> SMD 3.0.
> Focal Length 2.7 mm–13.5 mm, Field of View H: 114°–32°

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-S-Series/5MP/IPC-HDBW5541E-ZE=S3

Category Code

FNC

RJ45

1

Аудио вход

1

Аудио выход

1

Слот MicroSD карты

1

Тревожный вход

1

Тревожный выход

1

Модель

IPC-HDBW5541E-ZE-27135-S3

Тип устройства

Fixed Dome/HDTV/Megapixel/Outdoor

Разрешение

2960 (H) × 1668 (V)

Фокусное расстояние

2.7 mm–13.5 mm

Инфракрасная подсветка

Да

Матрица

1/2.7 CMOS

Микрофон

Да

Минимальное освещение

0.0005 лк

Скорость электронного затвора

Auto/Manual 1/3 s–1/100,000 s

Поддерживает емкость карты до

1TB

Требования к электропитанию

12 VDC/24 VAC/PoE (802.3af)/ePoE

Тип

Уличная

Диапазон рабочих температур

–30 °C to +60 °C

Цвет

Белый

Размер

Φ159.1 mm × 118.1 mm

Количество в транспортной упаковке

1

Объем

0.007447 м3

Вес без упаковки

0.91 кг

Вес в упаковке

1.22 кг
