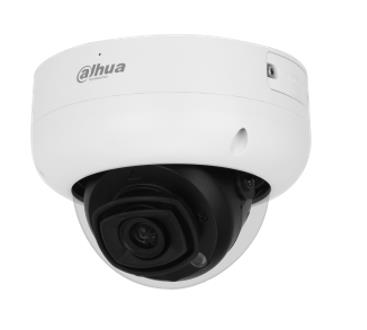

NET CAMERA 5MP IR DOME/HDBW5541R-ASE-0280B-S3 DAHUA

> 5-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5 MP (2960×1668) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 50 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC.
> 12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection.
> SMD 3.0.

Description

> 5-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5 MP (2960×1668) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 50 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC.
> 12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection.
> SMD 3.0.

Vendor Homepage

www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizMind-S-Series/5MP/IPC-HDBW5541R-ASE-S3=S3

Category Code

FNC

Unit Box Height

0.14

Unit Box Length

0.15

Unit Box Width

0.142

RJ45

1

Аудио вход

1

Аудио выход

1

Тревожный вход

1

Тревожный выход

1

Модель

IPC-HDBW5541R-ASE-0280B-S3

Дизайн

Dome

Тип устройства

Fixed Dome/HDTV/Megapixel/Outdoor

Разрешение

2960 (H) × 1668 (V)

Инфракрасная подсветка

Да

Матрица

1/2.7

Микрофон

Да

Крепление объектива

M12

Минимальное освещение

0.0005 лк

Скорость электронного затвора

Auto/Manual 1/3 s–1/100,000 s

Поддерживает емкость карты до

512GB

Параметры питания

12V/PoE

Требования к электропитанию

12 VDC/PoE (802.3af)/ePoE

Потребляемая мощность

5.2 Вт

Тип

Уличная

Диапазон рабочих температур

–40 °C to +60 °C

Цвет

Белый

Размер

94.0 mm × Φ122.0 mm

Количество в транспортной упаковке

1

Объем

0.002982 м3

Вес без упаковки

0.7129 кг

Вес в упаковке

0.75 кг
