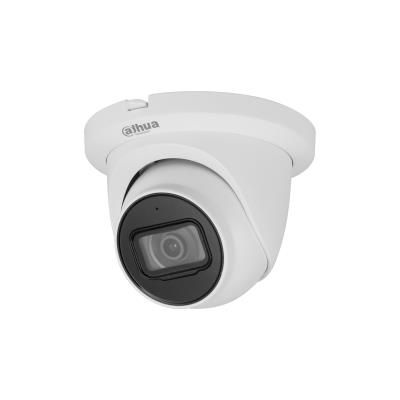

NET CAMERA 5MP IR EYEBALL/HDW5541TM-ASE-0280B-S3 DAHUA

1/2.7” 5Megapixel progressive CMOS, 2960 × 1668 @ 30FPS max

Minimum illumination: 0.0009 lux @F1.6 (Color, 30 IRE); 0.0005 lux @F1.6 (B/W, 30 IRE); 0 lux (Illuminator on)

True Day/Night (ICR), BLC/HLC/True WDR 120 dB/3D DNR

2.8 mm fixed lens (111° HFOV)

Up to 50 meters IR LED Illumination

H.265; H.264; H.264H; H.264B; MJPEG encoding, ONVIF (Profile S/Profile G/Profile T); CGI

Built-in MIC, 1/1 Audio I/O, 1/1 Alarm I/O

Micro SD card up to 256GB supported

Metal core, IP67, -40°C~+60°C, PoE / 12VDC power, 6.8W max

With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, people counting, etc.

Free IP monitoring software available

Description

1/2.7” 5Megapixel progressive CMOS, 2960 × 1668 @ 30FPS max

Minimum illumination: 0.0009 lux @F1.6 (Color, 30 IRE); 0.0005 lux @F1.6 (B/W, 30 IRE); 0 lux (Illuminator on)

True Day/Night (ICR), BLC/HLC/True WDR 120 dB/3D DNR

2.8 mm fixed lens (111° HFOV)

Up to 50 meters IR LED Illumination

H.265; H.264; H.264H; H.264B; MJPEG encoding, ONVIF (Profile S/Profile G/Profile T); CGI

Built-in MIC, 1/1 Audio I/O, 1/1 Alarm I/O

Micro SD card up to 256GB supported

Metal core, IP67, -40°C~+60°C, PoE / 12VDC power, 6.8W max

With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, people counting, etc.

Free IP monitoring software available

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-S-Series/5MP/IPC-HDW5541TM-ASE=S3

Model

IPC-HDW5541TM-ASE-0280B-S3

Camera design

Eyeball

Network Camera Type

HDTV/Megapixel/Outdoor

Pixel Resolution

5 Mega Pixel

Focal Length

2.8 mm

IR Illumination

Yes

Sensor size

1/2.7”

Microphone

Built-in

Lens Mount

M12

Min. Illumination

0.0009 Lux

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Alarm In

1

Alarm Out

1

Audio-In

1

Audio-Out

1

RJ45

1

Supports card capacities up to

256GB

Power options

12V/PoE

Power supply requirements

PoE / 12VDC power, 6.8W max

Power consumption

6.8 Watts

Environment

Outdoor

Operating temperature range

-40°C~+60°C

Colour

White

Dimensions

99.1 mm × Φ121.9 mm

Units per Shipping Box

24

Shipping Box Depth

58 cm

Shipping Box Height

30 cm

Shipping Box Weight

19.2 kg

Shipping Box Width

48 cm

Unit Calculated Volume

0.00348 cubm

Product Net Weight

0.5 kg

Unit Calculated Weight

0.8 kg

Unit Box Width

0.15

Unit Box Length

0.14

Unit Box Height

0.13

Full Description Line

Type HDTV/Megapixel/Outdoor|Pixel Resolution 5 Mega Pixel|Focal Length 2.8 mm|IR Illumination|Sensor size 1/2.7”|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0009 Lux|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements PoE / 12VDC power, 6.8W max|Environment Outdoor|Operating temperature range -40°C~+60°C|Colour White|Dimensions 99.1 mm × Φ121.9 mm

Category Code

FNC
