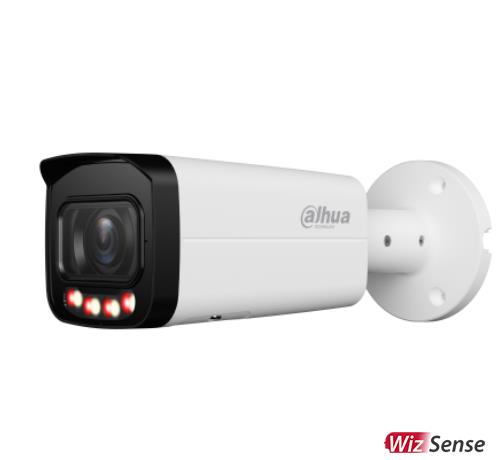

NET CAMERA 6MP BULLET/HFW2649T-ZAS-IL-27135 DAHUA

> 6-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 6MP (3288 × 1850) @20 fps, and supports 2688×1520 (2688 × 1520)@25/30 fps
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in multi-core light, the max. IR distance is 60 m and the max. warm light distance is 60 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in Mic.
> 12 VDC/PoE power supply.
> IP67, IK10 (optional) protection.
> SMD Plus
> Focal Length 2.7 mm–13.5 mm. Field of View 114°–32°

Description

> 6-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 6MP (3288 × 1850) @20 fps, and supports 2688×1520 (2688 × 1520)@25/30 fps
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in multi-core light, the max. IR distance is 60 m and the max. warm light distance is 60 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in Mic.
> 12 VDC/PoE power supply.
> IP67, IK10 (optional) protection.
> SMD Plus
> Focal Length 2.7 mm–13.5 mm. Field of View 114°–32°

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Light/IPC-HFW2649T-ZAS-IL

Category Code

FNC

Unit Box Height

0.12

Unit Box Length

0.12

Unit Box Width

0.285

Аудио вход

1

Аудио выход

1

RJ45

1

Тревожный вход

1

Тревожный выход

1

Дизайн

Bullet

Тип устройства

HDTV/Megapixel/Outdoor

Разрешение

3288 (H) × 1850 (V)

Фокусное расстояние

2.7 mm–13.5 mm

Матрица

1/2.7

Микрофон

Да

Крепление объектива

M14

Минимальное освещение

0.0007 лк

Скорость электронного затвора

Auto/Manual 1/3 s–1/100,000 s

Поддерживает емкость карты до

256GB

Параметры питания

12V/PoE

Потребляемая мощность

10.2 Вт

Тип

Уличная

Диапазон рабочих температур

–30 °C to +60 °C

Размер

238.5 mm × 90.7 mm × 90.7 mm

Количество в палете

0

Количество в транспортной упаковке

1

Объем

0.004104 м3

Вес без упаковки

0.76 кг

Вес в упаковке

0.96 кг
