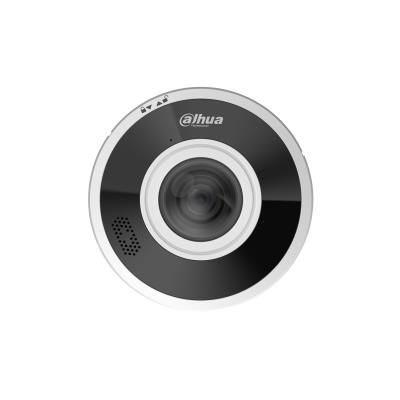

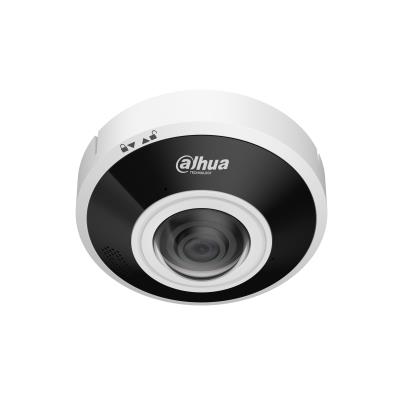

NET CAMERA 6MP FISHEYE DOME/IPC-EBW5641-AS DAHUA

> 6-MP 1/2.5 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 6 MP (2560 × 2560)@25/30 fps.
> 360° fisheye monitoring covers all the corners without any blind zone.
> Supports fisheye front-dewarp and back-dewarp.
> Supports split screen for 2 and 4 windows.
> Built-in IR LED, and the max. illumination distance is 15 m.
> ROI, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: Perimeter Protection, People Counting, Heat map.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1TB Micro SD card;
> Built-in speaker and dual Mic. Supports two-way talk.
> 12 VDC/ PoE(802.3af) power supply.
> IP67 and IK10 protection.
> Focal Length 1.68 mm, Field of View 185*185°

Description

> 6-MP 1/2.5 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 6 MP (2560 × 2560)@25/30 fps.
> 360° fisheye monitoring covers all the corners without any blind zone.
> Supports fisheye front-dewarp and back-dewarp.
> Supports split screen for 2 and 4 windows.
> Built-in IR LED, and the max. illumination distance is 15 m.
> ROI, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: Perimeter Protection, People Counting, Heat map.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1TB Micro SD card;
> Built-in speaker and dual Mic. Supports two-way talk.
> 12 VDC/ PoE(802.3af) power supply.
> IP67 and IK10 protection.
> Focal Length 1.68 mm, Field of View 185*185°

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-Panoramic-Series/Fisheye-Series/IPC-EBW5641-AS

Category Code

FNC

Unit Box Height

0.16

Unit Box Length

0.16

Unit Box Width

0.11

RJ45

1

Аудио вход

1

Аудио выход

1

Тревожный вход

1

Тревожный выход

1

Модель

IPC-EBW5641-AS

Дизайн

Other

Тип устройства

HDTV/Megapixel

Разрешение

2560 (H) × 2560 (V)

Фокусное расстояние

1.68 mm

Инфракрасная подсветка

Да

Матрица

1/2.5 CMOS

Микрофон

Да

Крепление объектива

M12

Минимальное освещение

0.0006 лк

Скорость электронного затвора

Auto/Manual 1/3 s–1/100,000 s

Поддерживает емкость карты до

512GB

Параметры питания

PoE

Требования к электропитанию

12 VDC, 1 A; PoE (802.3af)

Потребляемая мощность

10.1 Вт

Тип

Уличная

Диапазон рабочих температур

–30 °C to +60 °C

Цвет

Белый

Размер

Φ122 mm × 53.3 mm

Количество в транспортной упаковке

1

Объем

0.002816 м3

Вес без упаковки

0.46 кг

Вес в упаковке

0.77 кг
