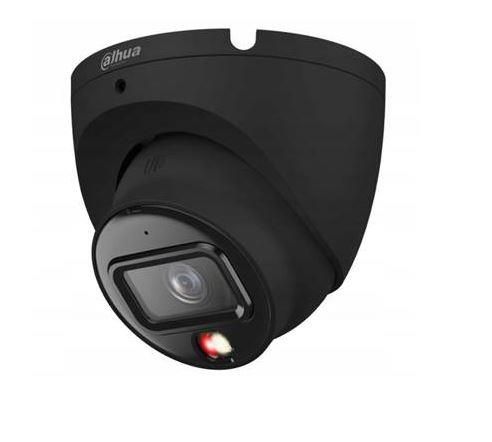

NET CAMERA 6MP IR EYEBALL/HDW1639T-AIL0280BS6-B DAHUA

IPC-HDW1639T-AIL0280BS6-B
> 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 6 MP (3200 × 1800) @20 fps, and supports 2688 × 1520@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in Multi-core Light, the max. IR distance is 30 m and the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Built in Mic.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> Supports human detection.
> Focal Length 2.8 mm, Field of View 110°

Description

IPC-HDW1639T-AIL0280BS6-B
> 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 6 MP (3200 × 1800) @20 fps, and supports 2688 × 1520@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in Multi-core Light, the max. IR distance is 30 m and the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Built in Mic.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> Supports human detection.
> Focal Length 2.8 mm, Field of View 110°

Vendor Homepage

material.dahuasecurity.com/uploads/cpq/prm-os-srv-res/smart/datasheetzipfiles/IPC-HDW1639T-A-IL_S6_datasheet_20240702.pdf

Model

IPC-HDW1639T-AIL0280BS6-B

Camera design

Eyeball

Network Camera Type

HDTV/Megapixel/Outdoor

Pixel Resolution

6 Mega Pixel

Focal Length

2.8 mm

IR Illumination

Yes

Sensor size

1/2.7 CMOS

Microphone

Built-in

Lens Mount

M12

Min. Illumination

0.0007 Lux

Effective pixels

3200 × 1800

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

RJ45

1

Power options

PoE

Power supply requirements

12 VDC/PoE (802.3af)

Power consumption

5.3 Watts

Environment

Outdoor

Operating temperature range

–40 °C to +60 °C

Colour

Black

Dimensions

85.6 mm × Φ94.0 mm

Units per Shipping Box

1

Shipping Box Depth

11.5 cm

Shipping Box Height

11 cm

Shipping Box Weight

0.45 kg

Shipping Box Width

11 cm

Unit Calculated Volume

0.001391 cubm

Product Net Weight

0.34 kg

Unit Calculated Weight

0.45 kg

Unit Box Width

0.11

Unit Box Length

0.115

Unit Box Height

0.11

Full Description Line

Type HDTV/Megapixel/Outdoor|Pixel Resolution 6 Mega Pixel|Focal Length 2.8 mm|IR Illumination|Sensor size 1/2.7 CMOS|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0007 Lux|Effective pixels 3200 × 1800|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xRJ45|Power options PoE|Power supply requirements 12 VDC/PoE (802.3af)|Environment Outdoor|Operating temperature range –40 °C to +60 °C|Colour Black|Dimensions 85.6 mm × Φ94.0 mm

Category Code

FNC
