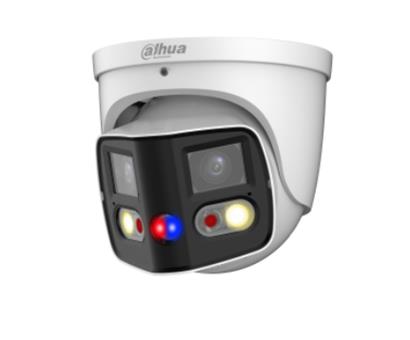

NET CAMERA 8MP EYEBALL/PDW3849-A180E2ASPV-0280B DAHUA

2x4MP TiOC Duo Splicing Fixed-focal Eyeball WizSense Network Camera
> Outputs 180° wide angle splicing image.
> Outputs max. 8 MP (4096 × 1860)@20 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED and warm light, the max. IR illumination distance is 25 m and warm light distance is 20 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in dual Mic; built in speaker, support two-way talk.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> Sound and light alarm (red and blue lights)
> EPTZ: Enlarge and track the targets of intelligent alarms.
> SMD 4.0.
> One-tap arming/disarming through alarm input

Description

2x4MP TiOC Duo Splicing Fixed-focal Eyeball WizSense Network Camera
> Outputs 180° wide angle splicing image.
> Outputs max. 8 MP (4096 × 1860)@20 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED and warm light, the max. IR illumination distance is 25 m and warm light distance is 20 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in dual Mic; built in speaker, support two-way talk.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> Sound and light alarm (red and blue lights)
> EPTZ: Enlarge and track the targets of intelligent alarms.
> SMD 4.0.
> One-tap arming/disarming through alarm input

Vendor Homepage

www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/TiOC/IPC-PDW3849-A180-AS-PV

Model

PDW3849-A180E2ASPV-0280B

Camera design

Eyeball

Network Camera Type

Outdoor

Pixel Resolution

8 Mega Pixel

Focal Length

2.8mm

IR Illumination

Yes

Sensor size

Dual 1/2.7 CMOS

Microphone

Built-in

Lens Mount

M12

Electronic Shutter Speed

1/3 s–1/100,000 s

Alarm In

1

Alarm Out

1

Audio-In

1

Audio-Out

1

MicroSD Card Slot

1

RJ45

1

Supports card capacities up to

256GB

Power options

12V/PoE

Power supply requirements

12 VDC/PoE

Environment

Outdoor

Operating temperature range

–40 °C to +60 °C

Colour

White

Dimensions

122 mm × 135.2 mm

Units per Shipping Box

1

Shipping Box Depth

17 cm

Shipping Box Height

17 cm

Shipping Box Weight

1.19 kg

Shipping Box Width

17 cm

Unit Calculated Volume

0.004913 cubm

Product Net Weight

0.99 kg

Unit Calculated Weight

1.19 kg

Unit Box Width

0.17

Unit Box Length

0.17

Unit Box Height

0.17

Full Description Line

Type Outdoor|Pixel Resolution 8 Mega Pixel|Focal Length 2.8mm|IR Illumination|Sensor size Dual 1/2.7 CMOS|Microphone Built-in|Lens Mount M12|Electronic Shutter Speed 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xMicroSD Card Slot|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12 VDC/PoE|Environment Outdoor|Operating temperature range –40 °C to +60 °C|Colour White|Dimensions 122 mm × 135.2 mm
