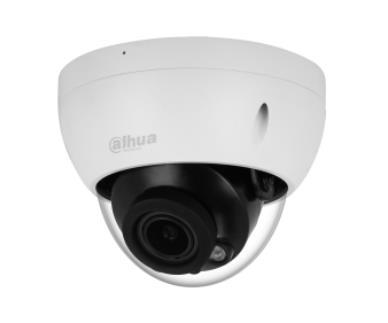

NET CAMERA 8MP IR DOME/IPC-HDBW2841R-ZAS-27135 DAHUA

8MP IR Vari-focal Dome WizSense Network Camera
> 8-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160) @20 fps, and supports 2688 ×1520 (2688 × 1520) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out (Only - ZAS supports); supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/PoE power supply, easy for installation.
> IP67, IK10 protection.
> SMD Plus.

Description

8MP IR Vari-focal Dome WizSense Network Camera
> 8-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160) @20 fps, and supports 2688 ×1520 (2688 × 1520) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out (Only - ZAS supports); supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/PoE power supply, easy for installation.
> IP67, IK10 protection.
> SMD Plus.

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/8MP/IPC-HDBW2841R-ZAS

Category Code

FNC

CnCode

85258900

Unit Box Height

0.135

Unit Box Length

0.155

Unit Box Width

0.155

Alarm In

1

Alarm Out

1

Audio-In

1

Audio-Out

1

RJ45

1

Model

IPC-HDBW2841R-ZAS-27135

Camera design

Dome

Network Camera Type

Fixed Dome/HDTV/Megapixel/Outdoor

Resolution

8 Mega Pixel

Focal Length

2.7 mm–13.5 mm

IR Illumination

Yes

Sensor size

1/2.7

Microphone

Built-in

Lens Mount

M14

Min. Illumination

0.0008 Lux

Effective pixels

3840 (H) × 2160 (V)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Supports card capacities up to

256GB

Power options

12V/PoE

Power supply requirements

12 VDC/PoE (802.3af)

Power consumption

3.4 Watts

Environment

Outdoor

Operating temperature range

–30 °C to +60 °C

Colour

White

Dimensions

93.4 mm × Φ122 mm

Units per Shipping Box

1

Unit Calculated Volume

0.003243 cubm

Product Net Weight

0.51 kg

Unit Calculated Weight

0.68 kg
