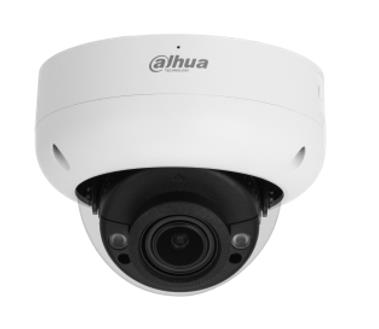

NET CAMERA 8MP IR DOME/IPC-HDBW3841R-ZAS27135S2 DAHUA

> 8-MP 1/2.8 CMOS image sensor, excellent low luminance performance and high definition of images.
> Outputs max. 8MP (3840 × 2160) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, max. IR distance: 40 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out (Only - ZAS supports); max. 256 G Micro SD card; built-in Mic.
> 12 VDC/PoE power supply facilitates installation.
> IP67, IK10 protection.
> SMD 4.0, AI SSA.

Description

> 8-MP 1/2.8 CMOS image sensor, excellent low luminance performance and high definition of images.
> Outputs max. 8MP (3840 × 2160) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, max. IR distance: 40 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out (Only - ZAS supports); max. 256 G Micro SD card; built-in Mic.
> 12 VDC/PoE power supply facilitates installation.
> IP67, IK10 protection.
> SMD 4.0, AI SSA.

Vendor Homepage

www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/3-Series/8MP/IPC-HDBW3841R-ZAS-S2=S2

Category Code

FNC

Unit Box Height

0.16

Unit Box Length

0.19

Unit Box Width

0.19

RJ45

1

Аудио вход

1

Аудио выход

1

Тревожный вход

1

Тревожный выход

1

Модель

IPC-HDBW3841R-ZAS27135S2

Дизайн

Dome

Тип устройства

Fixed Dome/HDTV/Megapixel/Outdoor

Разрешение

3840 (H) × 2160 (V)

Фокусное расстояние

2.7 mm–13.5 mm

Инфракрасная подсветка

Да

Матрица

1/2.8

Микрофон

Да

Крепление объектива

M14

Минимальное освещение

0.0007 лк

Скорость электронного затвора

Auto/Manual 1/3 s–1/100,000 s

Поддерживает емкость карты до

256GB

Параметры питания

12V/PoE

Требования к электропитанию

12 VDC/PoE (802.3af)

Потребляемая мощность

4.9 Вт

Тип

Уличная

Диапазон рабочих температур

–30 °C to +60 °C

Цвет

Белый

Размер

94 mm × Φ122 mm

Количество в палете

0

Количество в транспортной упаковке

1

Объем

0.005776 м3

Вес без упаковки

0.713 кг

Вес в упаковке

0.81 кг
