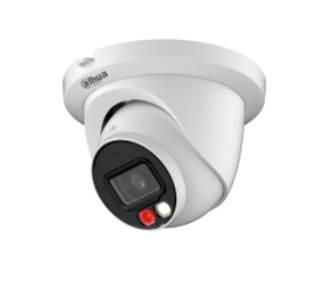

NET CAMERA 8MP IR EYEBALL/IPC-HDW2849TM-S-IL-0280B DAHUA

- 1/2.7” 8Megapixel progressive CMOS
- 8MP 3840 × 2160 @ 20FPS (2688 × 1520 @ 30FPS)
- Minimum illumination: 0.008 lux @ F1.6 (Color, 30 IRE), 0.0008 lux @ F1.6 (B/W, 30 IRE), 0 lux (Illuminator on)
- Up to 30 meters IR Illumination / visible warm white light
- True Day/Night (ICR), 3DNR, BLC / HLC / True WDR 120dB / 3D DNR
- Fixed lens 2.8 mm (111°)
- H.265; H.264; H.264H; H.264B; MJPEG encoding, ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
- Micro SD Card slot, up to 256GB
- Built-in MIC
- Metal case, Eyeball design, IP67, -40°C~+55°C, PoE / 12VDC power
- General IVS Analytics: Intrusion; tripwire (detection of vehicle and human)
- Free IP monitoring software available

Description

- 1/2.7” 8Megapixel progressive CMOS
- 8MP 3840 × 2160 @ 20FPS (2688 × 1520 @ 30FPS)
- Minimum illumination: 0.008 lux @ F1.6 (Color, 30 IRE), 0.0008 lux @ F1.6 (B/W, 30 IRE), 0 lux (Illuminator on)
- Up to 30 meters IR Illumination / visible warm white light
- True Day/Night (ICR), 3DNR, BLC / HLC / True WDR 120dB / 3D DNR
- Fixed lens 2.8 mm (111°)
- H.265; H.264; H.264H; H.264B; MJPEG encoding, ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
- Micro SD Card slot, up to 256GB
- Built-in MIC
- Metal case, Eyeball design, IP67, -40°C~+55°C, PoE / 12VDC power
- General IVS Analytics: Intrusion; tripwire (detection of vehicle and human)
- Free IP monitoring software available

Vendor Homepage

www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Illuminators/IPC-HDW2849TM-S-IL

Model

IPC-HDW2849TM-S-IL-0280B

Camera design

Eyeball

Network Camera Type

Fixed

Pixel Resolution

8 Mega Pixel

Focal Length

2.8 mm

IR Illumination

Yes

Sensor size

1/2.7 CMOS

Microphone

Built-in

Lens Mount

M12

Electronic Shutter Speed

1/3 s–1/100,000 s

RJ45

1

Supports card capacities up to

256GB

Power options

12V/PoE

Power supply requirements

12 VDC/PoE (802.3af)

Power consumption

2.6 Watts

Environment

Outdoor

Operating temperature range

–40 °C to +55 °C

Colour

White

Dimensions

99.1 mm × Φ121.9 mm

Units per Shipping Box

1

Shipping Box Depth

13.8 cm

Shipping Box Height

11.5 cm

Shipping Box Weight

0.7 kg

Shipping Box Width

13.8 cm

Unit Calculated Volume

0.00219 cubm

Product Net Weight

0.48 kg

Unit Calculated Weight

0.7 kg

CnCode

85258900

Unit Box Width

0.138

Unit Box Length

0.138

Unit Box Height

0.115

Full Description Line

Type Fixed|Pixel Resolution 8 Mega Pixel|Focal Length 2.8 mm|IR Illumination|Sensor size 1/2.7 CMOS|Microphone Built-in|Lens Mount M12|Electronic Shutter Speed 1/3 s–1/100,000 s|1xRJ45|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12 VDC/PoE (802.3af)|Environment Outdoor|Operating temperature range –40 °C to +55 °C|Colour White|Dimensions 99.1 mm × Φ121.9 mm

Category Code

FNC
