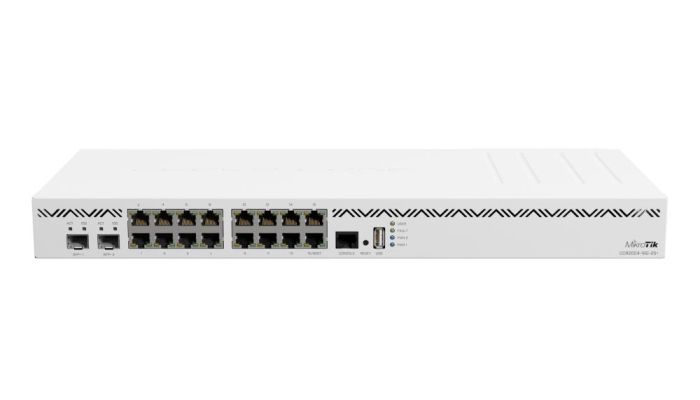

NET ROUTER 1000M 16PORT/CCR2004-16G-2S+ MIKROTIK

CCR2004-16G-2S+


This powerful and affordable router crushes all previous CCR models in single-core performance. 16x Gigabit Ethernet ports, 2x10G SFP+ cages, active cooling and the best single-core performance per watt & best overall performance per watt among all the CCR devices.


Like the other models in CCR2004 series, this CCR also features the Annapurna Labs Alpine v2 CPU with 4x 64-bit ARMv8-A Cortex-A57 cores running at 1,7GHz. But here’s the difference. This powerful router crushes all previous CCR models in single-core performance, and that is the most important aspect when it comes to heavy operations based on per-connection processing. Like queues, for example.But that’s not all! It also has the best single-core performance per watt and best overall performance per watt among all the CCR devices. Better for the planet, better for the bills, it’s a win-win!


The new router has 18 wired ports, including 16x Gigabit Ethernet ports and two 10G SFP+ cages. It also has a RJ-45 console port on the front panel. Like all CCR devices, it comes in a classic white 1U rackmount case. Built-in dual redundant power supplies are included, so you have one less thing to worry about. And, of course, there is active cooling to keep things nice and cool. Each group of 8 Gigabit Ethernet ports is connected to a separate Marvell Amethyst family switch-chip. Each switch chip has a 10 Gbps full-duplex line connected to the CPU. The same goes for each SFP+ cage - a separate 10 Gbps full-duplex line. Boards come with 4GB of DDR4 RAM and 128MB of NAND storage.


Please note, due to parts shortage these routers don't have USB port. There is an r2 added in the serial number - for example, serial number 123407ABCDEF/313/r2 would mean that this is the version without the USB.

Description

CCR2004-16G-2S+


This powerful and affordable router crushes all previous CCR models in single-core performance. 16x Gigabit Ethernet ports, 2x10G SFP+ cages, active cooling and the best single-core performance per watt & best overall performance per watt among all the CCR devices.


Like the other models in CCR2004 series, this CCR also features the Annapurna Labs Alpine v2 CPU with 4x 64-bit ARMv8-A Cortex-A57 cores running at 1,7GHz. But here’s the difference. This powerful router crushes all previous CCR models in single-core performance, and that is the most important aspect when it comes to heavy operations based on per-connection processing. Like queues, for example.But that’s not all! It also has the best single-core performance per watt and best overall performance per watt among all the CCR devices. Better for the planet, better for the bills, it’s a win-win!


The new router has 18 wired ports, including 16x Gigabit Ethernet ports and two 10G SFP+ cages. It also has a RJ-45 console port on the front panel. Like all CCR devices, it comes in a classic white 1U rackmount case. Built-in dual redundant power supplies are included, so you have one less thing to worry about. And, of course, there is active cooling to keep things nice and cool. Each group of 8 Gigabit Ethernet ports is connected to a separate Marvell Amethyst family switch-chip. Each switch chip has a 10 Gbps full-duplex line connected to the CPU. The same goes for each SFP+ cage - a separate 10 Gbps full-duplex line. Boards come with 4GB of DDR4 RAM and 128MB of NAND storage.


Please note, due to parts shortage these routers don't have USB port. There is an r2 added in the serial number - for example, serial number 123407ABCDEF/313/r2 would mean that this is the version without the USB.

Vendor Homepage

mikrotik.com/product/ccr2004_16g_2s_

Product model code

CCR2004-16G-2S+

Network Device Type

Router

10/100/1000M

16

SPF+

2

Memory (RAM)

4GB

Flash memory capacity

128MB

Power supply requirements

100-240 V

Power consumption

48 Watts

Operating temperature range

-20°C to +60°C

Dimensions

443 x 210 x 44 mm

Units per Shipping Box

1

Shipping Box Depth

47 cm

Shipping Box Height

5.5 cm

Shipping Box Weight

2.63 kg

Shipping Box Width

29 cm

Unit Calculated Volume

0.007496 cubm

Product Net Weight

2 kg

Unit Calculated Weight

2.63 kg

Unit Box Width

0.29

Unit Box Length

0.47

Unit Box Height

0.055

Full Description Line

CCR2004-16G-2S+|Network Device Type Router|16x10/100/1000M|2xSPF+|Memory (RAM) 4GB|Flash memory capacity 128MB|Power supply requirements 100-240 V|Power consumption 48 Watts|Operating temperature range -20°C to +60°C|Dimensions 443 x 210 x 44 mm

Category Code

ROU
