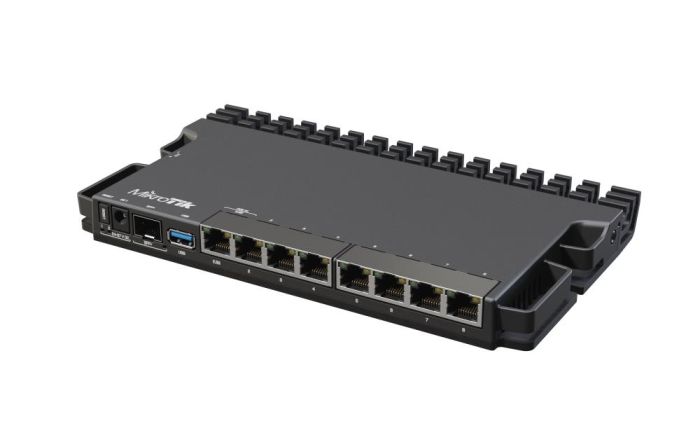

NET ROUTER 1000M 7PORT/RB5009UG+S+IN MIKROTIK

RB5009UG+S+IN

The ultimate heavy-duty home lab router with USB 3.0, 1G and 2.5G Ethernet and a 10G SFP+ cage. You can mount four of these new routers in a single 1U rackmount space! Unprecedented processing power in such a small form factor.


Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more!


The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink!

Description

RB5009UG+S+IN

The ultimate heavy-duty home lab router with USB 3.0, 1G and 2.5G Ethernet and a 10G SFP+ cage. You can mount four of these new routers in a single 1U rackmount space! Unprecedented processing power in such a small form factor.


Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more!


The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink!

Vendor Homepage

mikrotik.com/product/rb5009ug_s_in

Category Code

ROU

CnCode

85176200

Unit Box Height

0.05

Unit Box Length

0.31

Unit Box Width

0.13

2.5GbE

1

1GbE

7

SFP+

1

USB 3.0

1

Product model code

RB5009UG+S+IN

Network Device Type

Router

Memory (RAM)

1GB

Flash memory capacity

1GB

Power supply requirements

DC jack, PoE-IN, 2-pin terminal

Power consumption

20 Watts

Operating temperature range

-40°C to +60°C

Dimensions

220 x 21.5 x 125 mm

Units per Shipping Box

1

Unit Calculated Volume

0.002015 cubm

Product Net Weight

0.6 kg

Unit Calculated Weight

0.78 kg
