NET ROUTER 8PORT 1000M/CSS610-1GI-7R-2S+OUT MIKROTIK

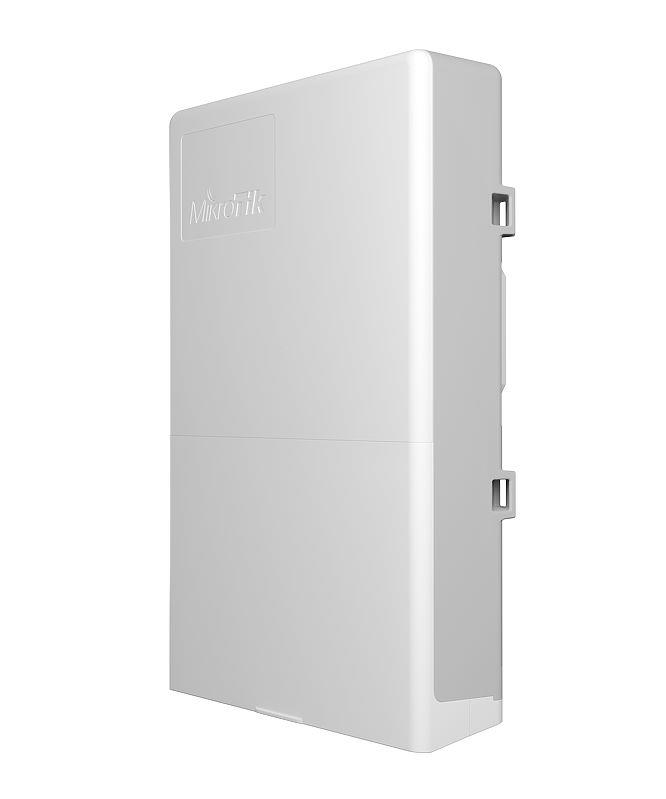

MIKROTIK netPower Lite 7R

An outdoor reverse PoE switch with Gigabit Ethernet and 10G SFP+ ports.



With netPower Lite 7R switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept – aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.


With this switch you won’t have to worry about power issues, as there are many options. netPower Lite 7R has 7 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Ethernet port 8 can power other PoE capable devices with the same voltage as applied to the unit. There is also a DC jack and a 2-pin terminal for alternative powering.


The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower Lite 7R has a non-blocking throughput of 28 Gbps, switching capacity of 56 Gbps and forwarding rate of 41.7 Mpps.


The power supply is NOT included with the product- must be purchased separately. Read more information about GPEN concept.

Description

MIKROTIK netPower Lite 7R

An outdoor reverse PoE switch with Gigabit Ethernet and 10G SFP+ ports.



With netPower Lite 7R switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept – aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.


With this switch you won’t have to worry about power issues, as there are many options. netPower Lite 7R has 7 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Ethernet port 8 can power other PoE capable devices with the same voltage as applied to the unit. There is also a DC jack and a 2-pin terminal for alternative powering.


The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower Lite 7R has a non-blocking throughput of 28 Gbps, switching capacity of 56 Gbps and forwarding rate of 41.7 Mpps.


The power supply is NOT included with the product- must be purchased separately. Read more information about GPEN concept.

Vendor Homepage

mikrotik.com/product/netpower_lite_7r

Product model code

CSS610-1Gi-7R-2S+OUT // netPower Lite 7R

Network Device Type

Router

10Base-T / 100Base-TX / 1000Base-T

8

SFP+

2

Operating temperature range

-40°C — 70°C

Dimensions

304 x 212 x 71 мм

Units per Shipping Box

1

Shipping Box Depth

39 cm

Shipping Box Height

24 cm

Shipping Box Weight

1.995 kg

Shipping Box Width

8.5 cm

Unit Calculated Volume

0.007956 cubm

Product Net Weight

1.6 kg

Unit Calculated Weight

2 kg

Unit Box Width

0.085

Unit Box Length

0.39

Unit Box Height

0.24

Full Description Line

CSS610-1Gi-7R-2S+OUT // netPower Lite 7R|Network Device Type Router|8x10Base-T / 100Base-TX / 1000Base-T|2xSFP+|Operating temperature range -40°C — 70°C|Dimensions 304 x 212 x 71 мм

Category Code

ROU
