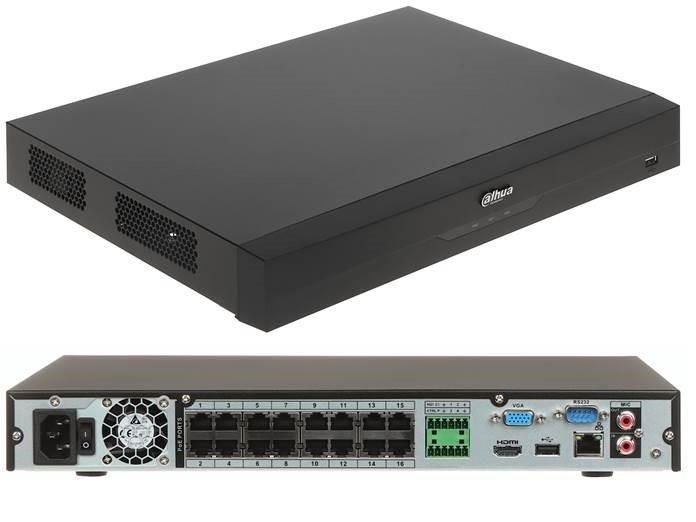

NET VIDEO RECORDER 16CH 16POE/NVR4216-16P-EI DAHUA

- 16 IP channel max, up to 16MP resolution
- Max: 256Mbps recording bandwidth, Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
- VGA/HDMI up to 4K output, decoding up to 2-channel 16 MP @ 30 fps
- 2 SATA III ports, up to 16 TB for a single HDD
- PoE 16 ports, 10/100 Mbps, IEEE 802.3 af/at, total 130W max
- No front panel control, 4/2 alarm I/O, 2 USB, Two-way Talk: 1/1
- Desktop mounted chassis
- AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
- AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; people counting; stereo analysis; heat map.Free IP monitoring software available, ONVIF 22.06 (Profile T; Profile S; Profile G); CGI; SDK
- Other brands IP cameras supported

Description

- 16 IP channel max, up to 16MP resolution
- Max: 256Mbps recording bandwidth, Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
- VGA/HDMI up to 4K output, decoding up to 2-channel 16 MP @ 30 fps
- 2 SATA III ports, up to 16 TB for a single HDD
- PoE 16 ports, 10/100 Mbps, IEEE 802.3 af/at, total 130W max
- No front panel control, 4/2 alarm I/O, 2 USB, Two-way Talk: 1/1
- Desktop mounted chassis
- AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
- AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; people counting; stereo analysis; heat map.Free IP monitoring software available, ONVIF 22.06 (Profile T; Profile S; Profile G); CGI; SDK
- Other brands IP cameras supported

Vendor Homepage

www.dahuasecurity.com/ceen/products/All-Products/Network-Recorders/WizSense-Series/NVR-4-EI-Series/2-HDD/NVR4216-16P-EI

Model

NVR4216-16P-EI

Number of Channels

16

Number of drives/bays

2

15pin D-sub

1

Alarm In

4

Alarm Out

2

HDMI

1

RJ45

1

USB 2.0

2

PoE ports

16

Power supply requirements

100–240 VAC, 47-63 Hz

Dimensions

375.0 mm × 329.3 mm x 53.0 mm

Operating temperature range

–10 °C to +55 °C

Units per Shipping Box

5

Shipping Box Depth

75 cm

Shipping Box Height

44 cm

Shipping Box Weight

21 kg

Shipping Box Width

47 cm

Unit Calculated Volume

0.03102 cubm

Product Net Weight

2.6 kg

Unit Calculated Weight

4.2 kg

Unit Box Width

0.145

Unit Box Length

0.455

Unit Box Height

0.42

Full Description Line

Channels 16|Drives/bays 2|1x15pin D-sub|1xHDMI|2xUSB 2.0|1xRJ45|4xAlarm In|2xAlarm Out|Power supply requirements 100–240 VAC, 47-63 Hz|Dim. 375.0 mm × 329.3 mm x 53.0 mm|Temp. range –10 °C to +55 °C

Category Code

NVR
