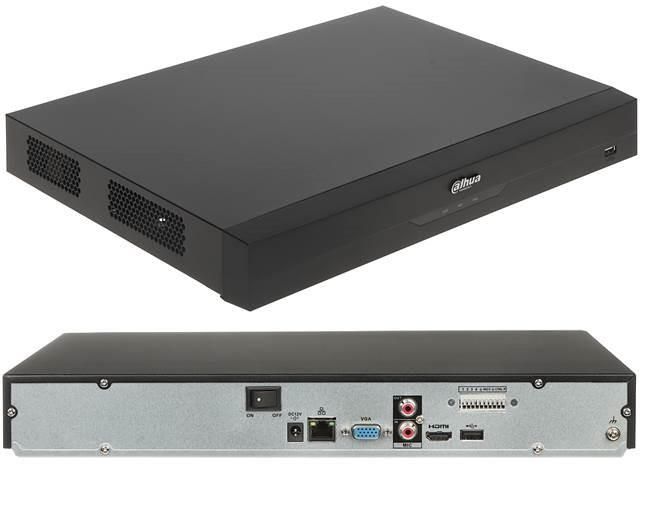

NET VIDEO RECORDER 16CH/NVR4216-EI DAHUA

- 16 IP channel max, up to 16MP resolution
- Max: 256Mbps recording bandwidth, Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
- VGA/HDMI up to 4K output, decoding up to 2-channel 16 MP @ 30 fps
- 2 SATA III ports, up to 16 TB for a single HDD
- No front panel control, 4/2 alarm I/O, 2 USB, Two-way Talk: 1/1
- Desktop mounted chassis
- AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
- AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; people counting; stereo analysis; heat map.Free IP monitoring software available, ONVIF 22.06 (Profile T; Profile S; Profile G); CGI; SDK
- Other brands IP cameras supported

Description

- 16 IP channel max, up to 16MP resolution
- Max: 256Mbps recording bandwidth, Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
- VGA/HDMI up to 4K output, decoding up to 2-channel 16 MP @ 30 fps
- 2 SATA III ports, up to 16 TB for a single HDD
- No front panel control, 4/2 alarm I/O, 2 USB, Two-way Talk: 1/1
- Desktop mounted chassis
- AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
- AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; people counting; stereo analysis; heat map.Free IP monitoring software available, ONVIF 22.06 (Profile T; Profile S; Profile G); CGI; SDK
- Other brands IP cameras supported

Vendor Homepage

www.dahuasecurity.com/ceen/products/All-Products/Network-Recorders/WizSense-Series/NVR-4-EI-Series/2-HDD/NVR4216-EI

Model

NVR4216-EI

Number of Channels

16

Number of drives/bays

2

SATA

Yes

15pin D-sub

1

Alarm In

4

Alarm Out

2

Audio-In

1

Audio-Out

1

HDMI

1

RJ45

1

USB 2.0

2

Power supply requirements

12 VDC, 4 A

Power consumption

10 Watts

Dimensions

375 mm × 284.3 mm × 53 mm

Operating temperature range

–10 °C to +55 °C

Units per Shipping Box

1

Shipping Box Depth

43.5 cm

Shipping Box Height

36 cm

Shipping Box Weight

2.77 kg

Shipping Box Width

14 cm

Unit Calculated Volume

0.02192 cubm

Product Net Weight

1.51 kg

Unit Calculated Weight

2.77 kg

Unit Box Width

0.14

Unit Box Length

0.435

Unit Box Height

0.36

Full Description Line

Channels 16|Drives/bays 2|SATA|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xRJ45|4xAlarm In|2xAlarm Out|Power supply requirements 12 VDC, 4 A|Power consumption 10 Watts|Dim. 375 mm × 284.3 mm × 53 mm|Temp. range –10 °C to +55 °C

Category Code

NVR
