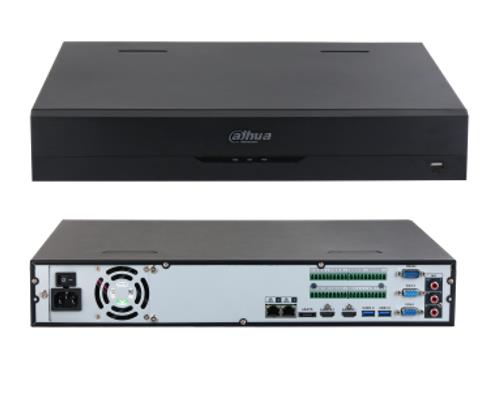

NET VIDEO RECORDER 32CH/NVR5432-EI DAHUA

32 IP channel max, up to 12MP resolution

Max 32MP, Record Rate 384 Mbps

Smart H.265+/H.265/Smart H.264+/H.264/MJPEG

2x HDMI/ 2x VGA

4 SATA interface up to 16TB

2 RJ-45 port (10/100/1000Mbps), 1x eSATA

16/6 alarm I/O, RS232, 4x USB, RS485

1.5U 19” chassis, no front panel control, mouse included

Other brands IP cameras supported: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc., ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK

2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD Plus

Free IP monitoring software available

Description

32 IP channel max, up to 12MP resolution

Max 32MP, Record Rate 384 Mbps

Smart H.265+/H.265/Smart H.264+/H.264/MJPEG

2x HDMI/ 2x VGA

4 SATA interface up to 16TB

2 RJ-45 port (10/100/1000Mbps), 1x eSATA

16/6 alarm I/O, RS232, 4x USB, RS485

1.5U 19” chassis, no front panel control, mouse included

Other brands IP cameras supported: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc., ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK

2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD Plus

Free IP monitoring software available

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Recorders/WizSense-Series/NVR-5-EI-Series/4HDD/NVR5432-EI

Category Code

NVR

Unit Box Height

0.205

Unit Box Length

0.525

Unit Box Width

0.5

Rack 1.5U

Да

Настольное исполнение

Да

Наличие SATA

Да

RJ45

2

RS232

1

Выход HDMI

2

Наличие RS-485

1

Наличие USB 2.0

4

Разъем 15pin D-sub

2

Тревожный вход

16

Тревожный выход

6

Количество каналов

32

Количество отсеков для HDD

4

Процессор

Industrial-grade processor

Встроенный сетевой адаптер

Gigabit

Требования к электропитанию

100–240 VAC, 50-60 Hz

Потребляемая мощность

13 Вт

Размер

440.0 × 415.1 x 70.0mm

Количество в транспортной упаковке

1

Объем

0.05381 м3

Вес без упаковки

4.74 кг

Вес в упаковке

6.55 кг
