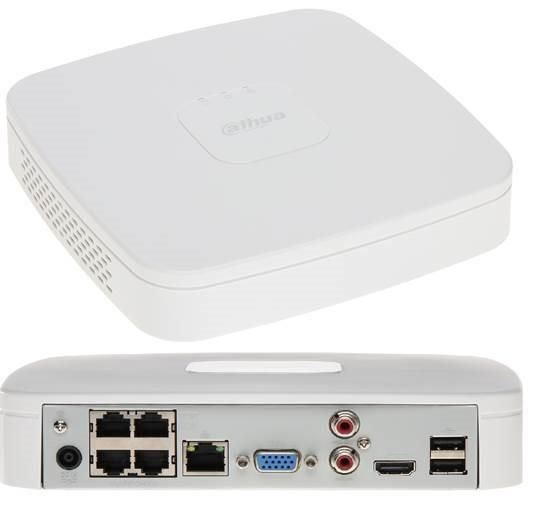

NET VIDEO RECORDER 4CH 4POE/NVR4104-P-EI DAHUA

- 4 IP channel max, up to 16MP resolution
- Max: 80Mbps recording bandwidth, Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
- VGA/HDMI up to 4K output, decoding up to 2-channel 16 MP @ 30 fps
- 1 SATA III port, up to 16 TB for a single HDD
- PoE 4 ports, 10/100 Mbps, IEEE 802.3 af/at, total 36W max
- No front panel control, no alarm I/O, 2 USB, Two-way Talk: 1/1
- Desktop mounted chassis
- AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
- AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; people counting; stereo analysis; heat map.
- Free IP monitoring software available, ONVIF 22.06 (Profile T; Profile S; Profile G); CGI; SDK
- Other brands IP cameras supported

Description

- 4 IP channel max, up to 16MP resolution
- Max: 80Mbps recording bandwidth, Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
- VGA/HDMI up to 4K output, decoding up to 2-channel 16 MP @ 30 fps
- 1 SATA III port, up to 16 TB for a single HDD
- PoE 4 ports, 10/100 Mbps, IEEE 802.3 af/at, total 36W max
- No front panel control, no alarm I/O, 2 USB, Two-way Talk: 1/1
- Desktop mounted chassis
- AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
- AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; people counting; stereo analysis; heat map.
- Free IP monitoring software available, ONVIF 22.06 (Profile T; Profile S; Profile G); CGI; SDK
- Other brands IP cameras supported

Vendor Homepage

www.dahuasecurity.com/ceen/products/All-Products/Network-Recorders/WizSense-Series/NVR-4-EI-Series/1-HDD/NVR4104-P-EI

Model

NVR4104-P-EI

Number of Channels

4

Number of drives/bays

1

15pin D-sub

1

Audio-In

1

Audio-Out

1

HDMI

1

RJ45

1

PoE ports

4

Power supply requirements

53 VDC, 1.226 A

Power consumption

36 Watts

Dimensions

204.6 mm × 206.4 mm × 45.6 mm

Operating temperature range

–10 °C to +55 °C

Colour

White

Units per Shipping Box

1

Shipping Box Depth

36 cm

Shipping Box Height

26 cm

Shipping Box Weight

1.361 kg

Shipping Box Width

10 cm

Unit Calculated Volume

0.00936 cubm

Product Net Weight

0.5 kg

Unit Calculated Weight

1.36 kg

Unit Box Width

0.1

Unit Box Length

0.36

Unit Box Height

0.26

Full Description Line

Channels 4|Drives/bays 1|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|1xRJ45|Power supply requirements 53 VDC, 1.226 A|Power consumption 36 Watts|Dim. 204.6 mm × 206.4 mm × 45.6 mm|Temp. range –10 °C to +55 °C|Colour White

Category Code

NVR
