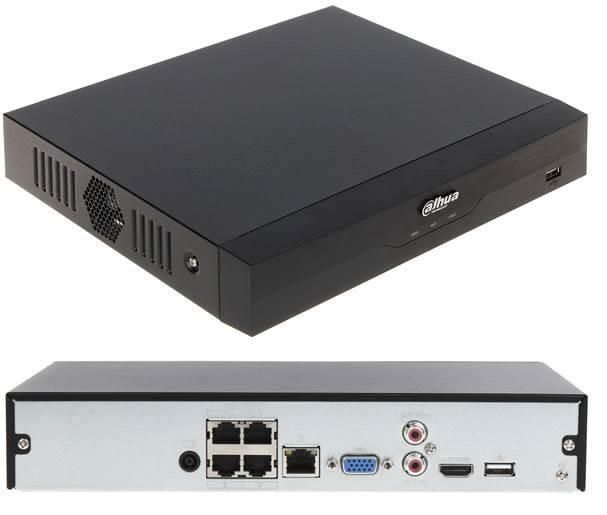

NET VIDEO RECORDER 4CH 4POE/NVR4104HS-P-EI DAHUA

- 4 IP channel max, up to 16MP resolution
- Max: 80Mbps recording bandwidth, Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
- VGA/HDMI up to 4K output, decoding up to 2-channel 16 MP @ 30 fps
- 1 SATA III port, up to 16 TB for a single HDD
- PoE 4 ports, 10/100 Mbps, IEEE 802.3 af/at, total 36W max
- No front panel control, no alarm I/O, 2 USB, Two-way Talk: 1/1
- Desktop mounted chassis
- AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
- AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; people counting; stereo analysis; heat map.
- Free IP monitoring software available, ONVIF 22.06 (Profile T; Profile S; Profile G); CGI; SDK
- Other brands IP cameras supported

Description

- 4 IP channel max, up to 16MP resolution
- Max: 80Mbps recording bandwidth, Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
- VGA/HDMI up to 4K output, decoding up to 2-channel 16 MP @ 30 fps
- 1 SATA III port, up to 16 TB for a single HDD
- PoE 4 ports, 10/100 Mbps, IEEE 802.3 af/at, total 36W max
- No front panel control, no alarm I/O, 2 USB, Two-way Talk: 1/1
- Desktop mounted chassis
- AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
- AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; people counting; stereo analysis; heat map.
- Free IP monitoring software available, ONVIF 22.06 (Profile T; Profile S; Profile G); CGI; SDK
- Other brands IP cameras supported

Vendor Homepage

www.dahuasecurity.com/ceen/products/All-Products/Network-Recorders/WizSense-Series/NVR-4-EI-Series/1-HDD/NVR4104HS-P-EI

Model

NVR4104HS-P-EI

Number of Channels

4

Number of drives/bays

1

15pin D-sub

1

Audio-In

1

Audio-Out

1

HDMI

1

RJ45

1

USB 2.0

2

PoE ports

4

Power supply requirements

53 VDC, 1.226 A

Power consumption

36 Watts

Dimensions

260 mm × 232.7 mm × 47.6 mm

Operating temperature range

–10 °C to +55 °C

Units per Shipping Box

1

Shipping Box Depth

37 cm

Shipping Box Height

30.5 cm

Shipping Box Weight

1.36 kg

Shipping Box Width

11.5 cm

Unit Calculated Volume

0.01298 cubm

Product Net Weight

0.86 kg

Unit Calculated Weight

1.36 kg

Unit Box Width

0.115

Unit Box Length

0.37

Unit Box Height

0.305

Full Description Line

Channels 4|Drives/bays 1|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xRJ45|Power supply requirements 53 VDC, 1.226 A|Power consumption 36 Watts|Dim. 260 mm × 232.7 mm × 47.6 mm|Temp. range –10 °C to +55 °C

Category Code

NVR
