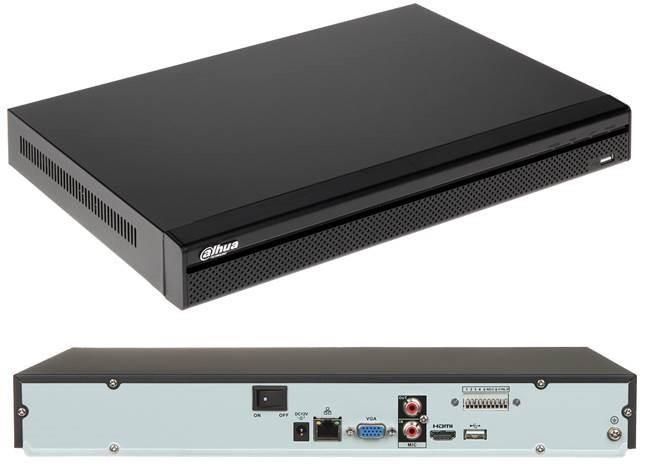

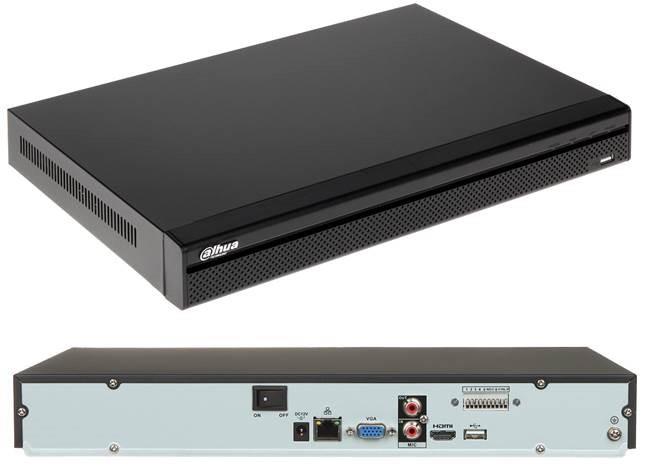

NET VIDEO RECORDER 4CH/NVR4204-4KS2/L DAHUA

- 4 IP channel max, up to 8MP resolution
- Max: 160Mbps recording bandwidth, Smart H.265/H.265/Smart H.264/H.264/MJPE
- VGA/HDMI up to 4K output, decoding 4 × 1080p @ 30 fps
- 2 SATA III ports, up to 10 TB for a single HDD
- No front panel control, 4/2 alarm I/O, 2 USB, Two-way Talk: 1/1 I/O
- Desktop mounted chassis
- AI by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD
- Free IP monitoring software available, ONVIF(profile T/S/G); CGI; SDK
- Other brands IP cameras supported

Description

- 4 IP channel max, up to 8MP resolution
- Max: 160Mbps recording bandwidth, Smart H.265/H.265/Smart H.264/H.264/MJPE
- VGA/HDMI up to 4K output, decoding 4 × 1080p @ 30 fps
- 2 SATA III ports, up to 10 TB for a single HDD
- No front panel control, 4/2 alarm I/O, 2 USB, Two-way Talk: 1/1 I/O
- Desktop mounted chassis
- AI by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD
- Free IP monitoring software available, ONVIF(profile T/S/G); CGI; SDK
- Other brands IP cameras supported

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Recorders/Lite-Series/NVR4/L-Series/2HDD/NVR4204-4KS2/L

Model

NVR4204-4KS2/L

Number of Channels

4

15pin D-sub

1

Alarm In

4

Alarm Out

2

Audio-In

1

Audio-Out

1

HDMI

1

RJ45

1

USB 2.0

2

Power supply requirements

DC12 V, 4 A

Dimensions

375 mm × 282.4 mm × 53 mm

Operating temperature range

–10 °C to +55 °C

Colour

Black

Units per Shipping Box

1

Shipping Box Depth

43.5 cm

Shipping Box Height

36 cm

Shipping Box Weight

2.8 kg

Shipping Box Width

14 cm

Unit Calculated Volume

0.02192 cubm

Product Net Weight

1.51 kg

Unit Calculated Weight

2.8 kg

Unit Box Width

0.14

Unit Box Length

0.435

Unit Box Height

0.36

Full Description Line

Channels 4|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xRJ45|4xAlarm In|2xAlarm Out|Power supply requirements DC12 V, 4 A|Dim. 375 mm × 282.4 mm × 53 mm|Temp. range –10 °C to +55 °C|Colour Black

Category Code

NVR
