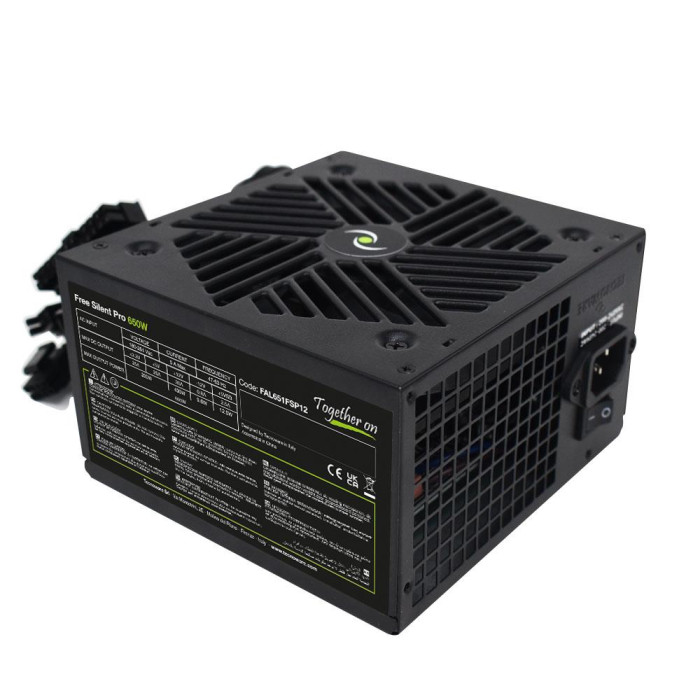

Power Supply|TECNOWARE|ATX|PC|180 - 264 V|650 W|FAL651FSP12

Internal power supply for personal computer, power 650W, input voltage 230 Vac, 50/60 Hz, conforms to ATX 12V v.2.31 specifications, main switch, surge protection, overload protection, short circuit protection, high MTBF, high reliability, quiet operation, 12 cm silent fan, temperature control of fan speed, Flat type connection cables from 500mm to 800mm, 1 x 20+4-pin connector, 1 x 12V 4+4-pin connector, 1 x 6+2 PCI-E connector, 2 x Molex connectors, 4 x Sata connector, dimensions 150x140x86 mm, weight 1.0 Kg, black color, CE certification, RoHS.

• Internal Power Supply for Computers
• High Efficiency (>85%) and High Operation Noise
• Active PFC >0.9
• Dimensions: 140x86x150 mm (WxHxD)
• Input voltage 230 Vac 50Hz
• Temperature control of the fan speed
• Flat connection cables from 500mm to 800mm
• Surge protection
• Overload protection
• Short circuit protection

Description

Internal power supply for personal computer, power 650W, input voltage 230 Vac, 50/60 Hz, conforms to ATX 12V v.2.31 specifications, main switch, surge protection, overload protection, short circuit protection, high MTBF, high reliability, quiet operation, 12 cm silent fan, temperature control of fan speed, Flat type connection cables from 500mm to 800mm, 1 x 20+4-pin connector, 1 x 12V 4+4-pin connector, 1 x 6+2 PCI-E connector, 2 x Molex connectors, 4 x Sata connector, dimensions 150x140x86 mm, weight 1.0 Kg, black color, CE certification, RoHS.

• Internal Power Supply for Computers
• High Efficiency (>85%) and High Operation Noise
• Active PFC >0.9
• Dimensions: 140x86x150 mm (WxHxD)
• Input voltage 230 Vac 50Hz
• Temperature control of the fan speed
• Flat connection cables from 500mm to 800mm
• Surge protection
• Overload protection
• Short circuit protection

Summary

Tecnoware FAL651FSP12. Total power: 650 W, AC input voltage: 180 - 264 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm

Vendor Homepage

https://www.tecnoware.com/en-US/Dettaglio/Articolo/849

Category Code

PSU

CnCode

85044095

AC input frequency

47 - 63 Hz

AC input voltage

180 - 264 V

Efficiency

85 %

Max output current (+12V)

26 A

Max output current (+3.3V)

25 A

Max output current (+5V)

26 A

Max output current (+5Vsb)

2.5 A

Max output current (-12V)

0.8 A

Power Factor Correction (PFC) type

Active

Power protection features

Overload/Short circuit/Surge protection

Total power

650 W

CPU power connector (4+4 pin)

Yes

Motherboard power connector

24-pin ATX

Number of SATA power connectors

4

PCI Express power connectors (6+2 pin)

1

Peripheral (Molex) power connectors (4-pin)

2

80 PLUS certification

No

ATX version

2.31

Power supply unit (PSU) form factor

ATX

Purpose

PC

Cooling type

Active

Fan diameter

120 mm

Number of fans

1 fan(s)

On/off switch

Yes

Product colour

Black

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-15 - 40 °C

Depth

140 mm

Height

86 mm

Weight

1000 g

Width

150 mm

Units per Shipping Box

1

Unit Calculated Volume

0.004 cubm

Unit Calculated Weight

2 kg
