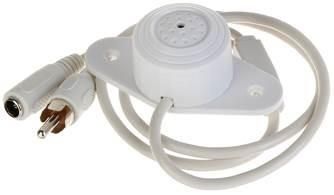

AUDIO MICROPHONE MODULE/HAP100 DAHUA

> Omni-directional condenser microphone, high fidelity;
> 30KV Air contact ESD, built-in Lightning Protection, power supply polarity reversal protection and electrostatic protection;
> Pinhole design, hidden installation; match with cameras or storage devices which have audio function


Scope 5-40m2

Sensitivity -40dB(-45~-20dB adjustable)

Frequency response 20Hz~20kHz

Directional characteristic Omni-directional

SNR 70dB(1m 40dB sound source SPL)

Dynamic range 104dB(1KHz at Max dB SPL)

Max. sustainable sound pressure 120dB SPL(1KHz, THD 1%)

Output impedance 600O(non-equilibrium)

Output signal amplitude 2.5Vpp/-25dB

Working voltage DC 12V(9~15V)

Working current 60mA(50~100mA)

Working temperature -30?~+70?(-22?~+158?)

Color White

Outer shell PC

Dimension 63mmx30mmx22mm(2.48”x1.18”x0.87”)

Weight 34g(0.07lb)

Carried standard CE/FCC

Description

> Omni-directional condenser microphone, high fidelity;
> 30KV Air contact ESD, built-in Lightning Protection, power supply polarity reversal protection and electrostatic protection;
> Pinhole design, hidden installation; match with cameras or storage devices which have audio function


Scope 5-40m2

Sensitivity -40dB(-45~-20dB adjustable)

Frequency response 20Hz~20kHz

Directional characteristic Omni-directional

SNR 70dB(1m 40dB sound source SPL)

Dynamic range 104dB(1KHz at Max dB SPL)

Max. sustainable sound pressure 120dB SPL(1KHz, THD 1%)

Output impedance 600O(non-equilibrium)

Output signal amplitude 2.5Vpp/-25dB

Working voltage DC 12V(9~15V)

Working current 60mA(50~100mA)

Working temperature -30?~+70?(-22?~+158?)

Color White

Outer shell PC

Dimension 63mmx30mmx22mm(2.48”x1.18”x0.87”)

Weight 34g(0.07lb)

Carried standard CE/FCC

Vendor Homepage

www.dahuasecurity.com/products/productDetail/16341

Colour

White

Dimensions

63 x 30 x 22mm

Units per Shipping Box

1

Shipping Box Depth

9.5 cm

Shipping Box Height

4.5 cm

Shipping Box Weight

0.06 kg

Shipping Box Width

9.4 cm

Unit Calculated Volume

0.0004018 cubm

Product Net Weight

0.034 kg

Unit Calculated Weight

0.06 kg

Unit Box Width

0.094

Unit Box Length

0.095

Unit Box Height

0.045

Full Description Line

Colour White|Unit Calculated Volume 0.0004018 cubm
