CAMERA HDCVI 1080P IR BULLET/HAC-HFW1200T-0280B-S6 DAHUA

HFW1200T-0280B-S6

CAMERA HDCVI 1080P IR BULLET / HAC-HFW1200T-0280B-S6 DAHUA

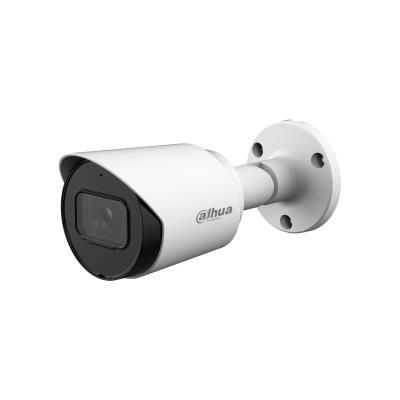

2MP IR HDCVI Fixed-focal Bullet Camera
* The parameters and datasheets below can only be applied to1200-S6 series.
> Max. 30 fps@1080p.
> Smart IR Illumination.
> 30 m illumination distance.
> Super Adapt.
> Built-in Mic.
> 3.6 mm fixed lens (2.8mm optional).
> CVI/CVBS/AHD/TVI switchable.
> IP67, 12 VDC.

Description

HFW1200T-0280B-S6

CAMERA HDCVI 1080P IR BULLET / HAC-HFW1200T-0280B-S6 DAHUA


2MP IR HDCVI Fixed-focal Bullet Camera
* The parameters and datasheets below can only be applied to1200-S6 series.
> Max. 30 fps@1080p.
> Smart IR Illumination.
> 30 m illumination distance.
> Super Adapt.
> Built-in Mic.
> 3.6 mm fixed lens (2.8mm optional).
> CVI/CVBS/AHD/TVI switchable.
> IP67, 12 VDC.

Vendor Homepage

www.dahuasecurity.com/products/All-Products/HDCVI-Cameras/Lite-Series/1080P/1080-P/HAC-HFW1200T(-A)=S6

Model

HAC-HFW1200T-0280B-S6DAHUA

Camera design

Bullet

Network Camera Type

Outdoor

Video interface

HDCVI

Pixel Resolution

2 Mega Pixel

Net camera resolution

2 - 4MP

Focal Length

2.8 mm;3.6 mm

Focal length

3.6 - 4mm

Lens Mount

M12

Min. Illumination

0.001 Lux

IR Illumination

Yes

Effective pixels

1920 (H) × 1080 (V)

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s

Power options

12V

Power supply requirements

12 VDC ± 30%

Power consumption

3.2 Watts

Colour

White

Dimensions

174.5 × 70.6 × 72.3 mm

Units per Shipping Box

20

Shipping Box Depth

48 cm

Shipping Box Height

23 cm

Shipping Box Weight

10.4 kg

Shipping Box Width

38.5 cm

Unit Calculated Volume

0.002125 cubm

Product Net Weight

0.34 kg

Unit Calculated Weight

0.52 kg

CnCode

85258900

Unit Box Width

0.092

Unit Box Length

0.205

Unit Box Height

0.092

Full Description Line

Type Outdoor|Video interface HDCVI|Focal Length 2.8 mm;3.6 mm|Lens Mount M12|Min. Illumination 0.001 Lux|Effective pixels 1920 (H) × 1080 (V)|Electronic Shutter Speed PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s|Power supply requirements 12 VDC ± 30%|Colour White|Dimensions 174.5 × 70.6 × 72.3 mm

Category Code

HSC
