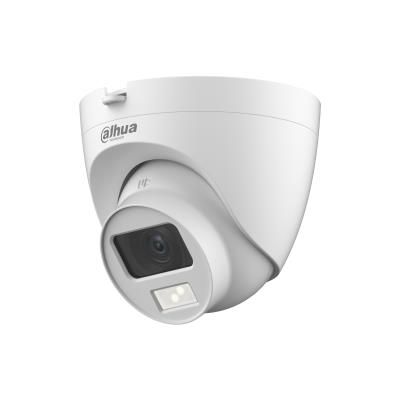

CAMERA HDCVI 2MP EYEBALL/HDW1200CLQ-IL-A-0280B-S6 DAHUA

HAC-HDW1200CLQ-IL-A

2MP Smart Dual Light HDCVI Fixed-focal Eyeball Camera

> Max. 30 fps@1080p.
> 3D NR.
> Smart Dual Light.
> 20 m illumination distance.
> Super Adapt.
> Built-in mic.
> Quick-to-install eyeball saves installation time.
> 3.6 mm fixed lens (2.8 mm optional).
> CVI/CVBS/AHD/TVI switchable.
> IP67, 12 VDC.

Description

HAC-HDW1200CLQ-IL-A

2MP Smart Dual Light HDCVI Fixed-focal Eyeball Camera

> Max. 30 fps@1080p.
> 3D NR.
> Smart Dual Light.
> 20 m illumination distance.
> Super Adapt.
> Built-in mic.
> Quick-to-install eyeball saves installation time.
> 3.6 mm fixed lens (2.8 mm optional).
> CVI/CVBS/AHD/TVI switchable.
> IP67, 12 VDC.

Vendor Homepage

www.dahuasecurity.com/products/All-Products/HDCVI-Cameras/Lite-Series/1080P/Smart-Dual-Light/HAC-HDW1200CLQ-IL-A=S6

Model

HAC-HDW1200CLQ-IL-A-0280B-S6

Camera design

Eyeball

Network Camera Type

Fixed/HDTV/Megapixel

Pixel Resolution

2 Mega Pixel

Net camera resolution

2 - 4MP

Sensor size

2 MP CMOS

Focal Length

2.8 mm;3.6 mm

Focal length

3.6 - 4mm

Lens Mount

M12

Min. Illumination

0.01 Lux

IR Illumination

Yes

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s; NTSC: 1/30 s–1/100000 s

Microphone

Built-in

Number of channels

1

Power supply requirements

12 VDC ± 30%

Power consumption

2.6 Watts

Dimensions

Φ97.1 mm × 93.8 mm

Units per Shipping Box

1

Shipping Box Depth

12.2 cm

Shipping Box Height

11.1 cm

Shipping Box Weight

0.3 kg

Shipping Box Width

11.9 cm

Unit Calculated Volume

0.001611 cubm

Product Net Weight

0.18 kg

Unit Calculated Weight

0.3 kg

Unit Box Width

0.119

Unit Box Length

0.122

Unit Box Height

0.111

Full Description Line

Type Fixed/HDTV/Megapixel|Sensor size 2 MP CMOS|Focal Length 2.8 mm;3.6 mm|Lens Mount M12|Min. Illumination 0.01 Lux|Electronic Shutter Speed PAL: 1/25 s–1/100000 s; NTSC: 1/30 s–1/100000 s|Microphone Built-in|Number of channels 1|Power supply requirements 12 VDC ± 30%|Dimensions Φ97.1 mm × 93.8 mm

Category Code

HSC
