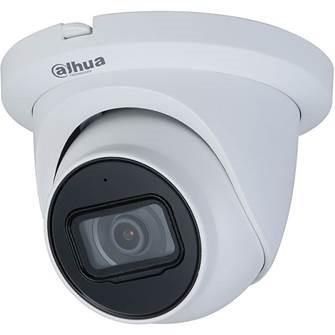

CAMERA HDCVI 2MP IR EYEBALL/HAC-HDW1231TLMQ-A-0280B DAHUA

1/2.8 CMOS, 1920 × 1080 @ 30FPS

Sensitivity: 0.002 Lux/F1.6, 30 IRE, 0 Lux IR on

Fixed lens 2.8mm (107°)

True Day / Night with ICR Filter, Visible white LED up to 30 m

BLC / HLC / True WDR 130 dB, 3D DNR

Built-in microphone

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Eyeball design, metal core, IP67, outdoor/indoor use, -40°C~+60°C

Power 12 VDC, 3.1 W max
.

Description

1/2.8 CMOS, 1920 × 1080 @ 30FPS

Sensitivity: 0.002 Lux/F1.6, 30 IRE, 0 Lux IR on

Fixed lens 2.8mm (107°)

True Day / Night with ICR Filter, Visible white LED up to 30 m

BLC / HLC / True WDR 130 dB, 3D DNR

Built-in microphone

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Eyeball design, metal core, IP67, outdoor/indoor use, -40°C~+60°C

Power 12 VDC, 3.1 W max
.

Vendor Homepage

www.dahuasecurity.com/products/All-Products/HDCVI-Cameras/Lite-Series/1080P/Starlight/HAC-HDW1231TLMQ(-A)

Camera design

Eyeball

Network Camera Type

Fixed Dome/HDTV/Megapixel/Outdoor

Video interface

HDCVI

Pixel Resolution

2 Mega Pixel

Net camera resolution

2 - 4MP

Sensor size

1/2.8 CMOS

Focal Length

2.8mm

Focal length

2.8 - 3.5mm

Lens Mount

M12

Min. Illumination

0.002 Lux

Effective pixels

1920(H)×1080(V)

Electronic Shutter Speed

PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s

Microphone

Built-in

Power options

12V

Power supply requirements

12 VDC

Power consumption

3.1 Watts

Environment

Outdoor

Dimensions

Φ109.9 mm × 88.1 mm

Units per Shipping Box

1

Shipping Box Depth

13 cm

Shipping Box Height

12 cm

Shipping Box Weight

0.439 kg

Shipping Box Width

11 cm

Unit Calculated Volume

0.001716 cubm

Product Net Weight

0.28 kg

Unit Calculated Weight

0.439 kg

Unit Box Width

0.11

Unit Box Length

0.13

Unit Box Height

0.12

Full Description Line

Type Fixed Dome/HDTV/Megapixel/Outdoor|Video interface HDCVI|Sensor size 1/2.8 CMOS|Focal Length 2.8mm|Lens Mount M12|Min. Illumination 0.002 Lux|Effective pixels 1920(H)×1080(V)|Electronic Shutter Speed PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s|Microphone Built-in|Power supply requirements 12 VDC|Dimensions Φ109.9 mm × 88.1 mm

Category Code

HSC
