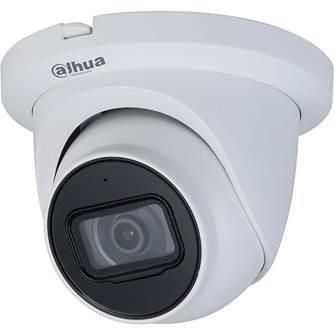

CAMERA HDCVI 2MP IR EYEBALL/HAC-HDW1231TMQ-A-0280B DAHUA

1/2.8 CMOS, 1920 × 1080 @ 30FPS

Sensitivity: 0.002 Lux/F1.6, 30 IRE, 0 Lux IR on

Fixed lens 2.8mm (107°)

True Day / Night with ICR Filter, Visible white LED up to 60 m

BLC / HLC / True WDR 130 dB, 3D DNR

Built-in microphone

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Eyeball design, metal core, IP67, outdoor/indoor use, -40°C~+60°C

Power 12 VDC, 5.1 W max

Description

1/2.8 CMOS, 1920 × 1080 @ 30FPS

Sensitivity: 0.002 Lux/F1.6, 30 IRE, 0 Lux IR on

Fixed lens 2.8mm (107°)

True Day / Night with ICR Filter, Visible white LED up to 60 m

BLC / HLC / True WDR 130 dB, 3D DNR

Built-in microphone

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Eyeball design, metal core, IP67, outdoor/indoor use, -40°C~+60°C

Power 12 VDC, 5.1 W max

Vendor Homepage

www.dahuasecurity.com/products/All-Products/HDCVI-Cameras/Lite-Series/1080P/1080-P/HAC-HDW1200TRQ(-A)

Camera design

Eyeball

Network Camera Type

Fixed Dome/HDTV/Megapixel/Outdoor

Pixel Resolution

2 Mega Pixel

Net camera resolution

2 - 4MP

Sensor size

1/2.8 CMOS

Focal Length

2.8mm

Focal length

2.8 - 3.5mm

Lens Mount

M12

Min. Illumination

0.02 Lux

IR Illumination

Yes

Effective pixels

1920(H)×1080(V)

Electronic Shutter Speed

PAL: 1/25s–1/100000s NTSC: 1/30s–1/100000s

Microphone

Built-in

Power options

12V

Power supply requirements

12V ±30% DC

Power consumption

5.1 Watts

Environment

Outdoor

Units per Shipping Box

1

Shipping Box Depth

15 cm

Shipping Box Height

13.5 cm

Shipping Box Weight

0.62 kg

Shipping Box Width

14 cm

Unit Calculated Volume

0.002835 cubm

Product Net Weight

0.17 kg

Unit Calculated Weight

0.62 kg

Unit Box Width

0.14

Unit Box Length

0.15

Unit Box Height

0.135

Full Description Line

Type Fixed Dome/HDTV/Megapixel/Outdoor|Sensor size 1/2.8 CMOS|Focal Length 2.8mm|Lens Mount M12|Min. Illumination 0.02 Lux|Effective pixels 1920(H)×1080(V)|Electronic Shutter Speed PAL: 1/25s–1/100000s NTSC: 1/30s–1/100000s|Microphone Built-in|Power supply requirements 12V ±30% DC

Category Code

HSC
