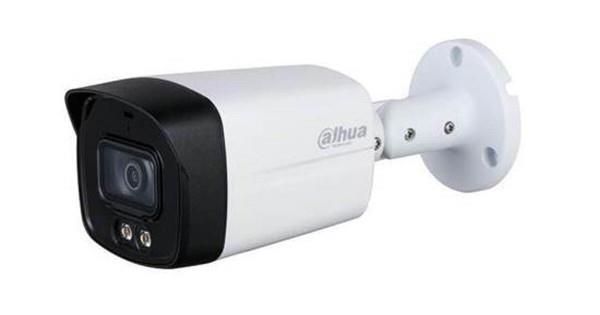

CAMERA HDCVI 5MP LED BULLET/HFW1509TLM-A-LED-0360BS2 DAHUA

Lite Series is suitable for users who requires high quality monitoring products at a reasonable price.

It is cost effective and offers high performance, which makes it an ideal choice for residential and small-medium business applications.

This series offers an option of a wide range of technologies such as Full-color and Starlight, providing various solutions for different scenarios.


5Megapixel progressive scan CMOS, 2880 × 1620 @25FPS

Minimum illumination: 0.001 Lux/F1.0, 0 Lux warm light on

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

BLC/HLC/True WDR 120 dB/HLC-Pro

3.6 mm fixed lens (88° HFOV)

Up to 40 meters white LED Illumination. 2 white LED

Built-in mic, audio over coax technology

Bullet design, combined shell, IP67, -40°C~+60°C

Power 12VDC ±30%, 6.4W max

Description

Lite Series is suitable for users who requires high quality monitoring products at a reasonable price.

It is cost effective and offers high performance, which makes it an ideal choice for residential and small-medium business applications.

This series offers an option of a wide range of technologies such as Full-color and Starlight, providing various solutions for different scenarios.


5Megapixel progressive scan CMOS, 2880 × 1620 @25FPS

Minimum illumination: 0.001 Lux/F1.0, 0 Lux warm light on

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

BLC/HLC/True WDR 120 dB/HLC-Pro

3.6 mm fixed lens (88° HFOV)

Up to 40 meters white LED Illumination. 2 white LED

Built-in mic, audio over coax technology

Bullet design, combined shell, IP67, -40°C~+60°C

Power 12VDC ±30%, 6.4W max

Vendor Homepage

www.dahuasecurity.com/ceen/products/All-Products/HDCVI-Cameras/Lite-Series/5MP/5MP-Full-color/HAC-HFW1509TLM(-A)-LED

Camera design

Bullet

Network Camera Type

Fixed/HDTV/Megapixel/Outdoor

Pixel Resolution

5 Mega Pixel

Net camera resolution

5 - 7MP

Focal Length

3.6 mm

Focal length

3.6 - 4mm

Min. Illumination

0.001 Lux

IR Illumination

Yes

Electronic Shutter Speed

PAL:1/3 s–1/100,000 s NTSC:1/4 s–1/100,000

Microphone

Built-in

Power options

12V

Power supply requirements

12VDC

Power consumption

6.4 Watts

Environment

Outdoor

Dimensions

198.4 mm × 80.2 mm × 76.2 mm

Units per Shipping Box

1

Shipping Box Depth

24 cm

Shipping Box Height

11.5 cm

Shipping Box Weight

0.52 kg

Shipping Box Width

12 cm

Unit Calculated Volume

0.003312 cubm

Product Net Weight

0.33 kg

Unit Calculated Weight

0.52 kg

Unit Box Width

0.12

Unit Box Length

0.24

Unit Box Height

0.115

Full Description Line

Type Fixed/HDTV/Megapixel/Outdoor|Focal Length 3.6 mm|Min. Illumination 0.001 Lux|Electronic Shutter Speed PAL:1/3 s–1/100,000 s NTSC:1/4 s–1/100,000|Microphone Built-in|Power supply requirements 12VDC|Dimensions 198.4 mm × 80.2 mm × 76.2 mm

Category Code

HSC
