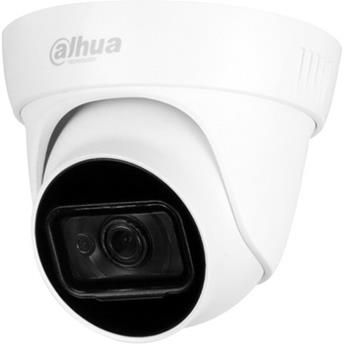

CAMERA HDCVI 8MP IR EYEBALL/HAC-HDW1800TL-A-0280B DAHUA

- 1/2.7 CMOS, 3840 × 2160 @ 30FPS
- Sensitivity: 0.03Lux/F2.0, 30IRE, 0Lux IR on
- Fixed lens 2.8 mm (105°)
- True Day / Night with ICR Filter, Smart IR LED up to 30 m
- BLC / HLC / DWDR, 2D DNR
- Built-in microphone
- Video output choices of CVI/TVI/AHD/CVBS by one BNC port
- Eyeball design, metal core, IP67, outdoor/indoor use, -40°C~+60°C
- Power 12 VDC, 4.3W max

Description

- 1/2.7 CMOS, 3840 × 2160 @ 30FPS
- Sensitivity: 0.03Lux/F2.0, 30IRE, 0Lux IR on
- Fixed lens 2.8 mm (105°)
- True Day / Night with ICR Filter, Smart IR LED up to 30 m
- BLC / HLC / DWDR, 2D DNR
- Built-in microphone
- Video output choices of CVI/TVI/AHD/CVBS by one BNC port
- Eyeball design, metal core, IP67, outdoor/indoor use, -40°C~+60°C
- Power 12 VDC, 4.3W max

Vendor Homepage

www.dahuasecurity.com/products/All-Products/HDCVI-Cameras/Lite-Series/4K/Real-time/HAC-HDW1800TL-A

Camera design

Eyeball

Network Camera Type

HDTV/Megapixel/Outdoor

Video interface

HDCVI

Pixel Resolution

8 Mega Pixel

Net camera resolution

8MP and more

Sensor size

1/2.7

Focal Length

2.8 mm

Focal length

2.8 - 3.5mm

Lens Mount

M12

Min. Illumination

0 Lux

IR Illumination

Yes

Effective pixels

3840 (H)× 2160 (V)

Electronic Shutter Speed

PAL: 1/25s–1/100000s, NTSC: 1/30s–1/100000s

Microphone

Built-in

Power supply requirements

12V ±30% DC

Power consumption

4.3 Watts

Environment

Outdoor

Dimensions

Φ97 mm × 85.8 mm

Units per Shipping Box

1

Shipping Box Depth

11 cm

Shipping Box Height

11 cm

Shipping Box Weight

0.34 kg

Shipping Box Width

11 cm

Unit Calculated Volume

0.001331 cubm

Product Net Weight

0.3 kg

Unit Calculated Weight

0.34 kg

Unit Box Width

0.11

Unit Box Length

0.11

Unit Box Height

0.11

Full Description Line

Type HDTV/Megapixel/Outdoor|Video interface HDCVI|Sensor size 1/2.7|Focal Length 2.8 mm|Lens Mount M12|Effective pixels 3840 (H)× 2160 (V)|Electronic Shutter Speed PAL: 1/25s–1/100000s, NTSC: 1/30s–1/100000s|Microphone Built-in|Power supply requirements 12V ±30% DC|Dimensions Φ97 mm × 85.8 mm

Category Code

HSC
