Case|BE QUIET|ATX/micro ATX/Mini-ITX|Black|Midi Tower|PC|BGW85

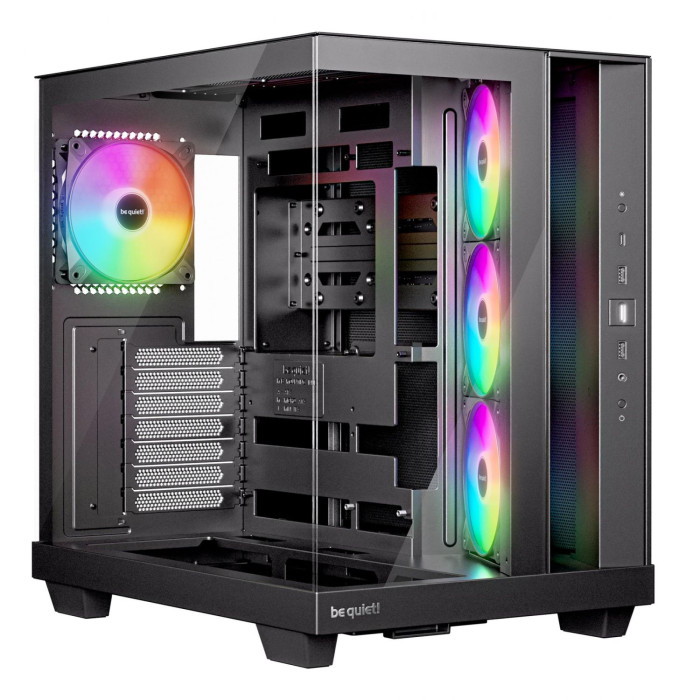

LIGHT BASE 500 LX BLACK
Core performance and aesthetics
Light Base 500 LX Black stands for a clean design and the core values of gaming: performance, accessibility and functionality.

ELEVATED ELEGANCE
Cool design, cooler GPU
The angled fan frame in the side is not only a testament to elegance and functionality but also directs more air towards the GPU – a part that traditionally requires a lot of it. It provides a neat triangular cutout that works as an efficient air intake. For an easy installation of fans, it slides out to the top. Cable management is easier than ever before with a channel that hides your equipment elegantly. If you install additional fans in the bottom, they line up perfectly with the case floor due to a lowered fan bay.

4 PREINSTALLED LIGHT WINGS LX
Wait, how many fans?!
Light Base 500 LX Black features 4 preinstalled Light Wings LX fans. The rear fan is a Light Wings LX 120mm, the fans on the side are Light Wings LX 120mm PWM fans with reversed fan blades. All fans feature 16 LEDs inside their hub of the impeller, making for an unmistakable ARGB illumination. The reversed fan blades make sure that their pretty side is visible at all times.

SPACIOUS DESIGN
Size matters after all
Light Base 500 LX Black might appear compact, but it comes with enough space for a 360mm radiator, an ATX motherboard and graphics cards up to 400mm length. The smart design of the drive bracket features slots for 1 HDD and 2 SSDs at the same time, without impeding the room for cable management behind the motherboard tray.

BUSINESS IN THE FRONT...
... Party in the back!
The motherboard tray fully supports backside connector designs like Asus BTF (Back to Future), MSI Project Zero, and Gigabyte Project Stealth, for a true and cable-free view. To enable backside connector support without giving up a drive slot, the position of the PSU and drive bracket are simply swapped!

YES TO ARGB
Join the light side
For those who appreciate subtle illumination without compromising on performance, the Light Base 500 LX Black adds a touch of sophistication to the core design thanks to the included Light Wings LX fans. An ARGB controller button with predefined lighting effects and colors is integrated into the I/O panel. The preinstalled rear fan and daisy-chained side fans are connected to a 6-way ARGB and PWM hub, leaving 4 free connectors for additional devices.

• Angled slide-out fan frame on the side routes air directly to the GPU
• Fans can be installed in the lowered fan bay to line up perfectly with the case floor
• 4 preinstalled Light Wings LX 120mm PWM fans for extraordinary airflow and impressive illumination
• ARGB controller button and ARGB fan hub
• Spacious design for radiators up to 360mm, and ATX motherboards
• 2 possible PSU positions enable backside connector motherboards
• Dust filters in the side and the bottom

Description

LIGHT BASE 500 LX BLACK
Core performance and aesthetics
Light Base 500 LX Black stands for a clean design and the core values of gaming: performance, accessibility and functionality.

ELEVATED ELEGANCE
Cool design, cooler GPU
The angled fan frame in the side is not only a testament to elegance and functionality but also directs more air towards the GPU – a part that traditionally requires a lot of it. It provides a neat triangular cutout that works as an efficient air intake. For an easy installation of fans, it slides out to the top. Cable management is easier than ever before with a channel that hides your equipment elegantly. If you install additional fans in the bottom, they line up perfectly with the case floor due to a lowered fan bay.

4 PREINSTALLED LIGHT WINGS LX
Wait, how many fans?!
Light Base 500 LX Black features 4 preinstalled Light Wings LX fans. The rear fan is a Light Wings LX 120mm, the fans on the side are Light Wings LX 120mm PWM fans with reversed fan blades. All fans feature 16 LEDs inside their hub of the impeller, making for an unmistakable ARGB illumination. The reversed fan blades make sure that their pretty side is visible at all times.

SPACIOUS DESIGN
Size matters after all
Light Base 500 LX Black might appear compact, but it comes with enough space for a 360mm radiator, an ATX motherboard and graphics cards up to 400mm length. The smart design of the drive bracket features slots for 1 HDD and 2 SSDs at the same time, without impeding the room for cable management behind the motherboard tray.

BUSINESS IN THE FRONT...
... Party in the back!
The motherboard tray fully supports backside connector designs like Asus BTF (Back to Future), MSI Project Zero, and Gigabyte Project Stealth, for a true and cable-free view. To enable backside connector support without giving up a drive slot, the position of the PSU and drive bracket are simply swapped!

YES TO ARGB
Join the light side
For those who appreciate subtle illumination without compromising on performance, the Light Base 500 LX Black adds a touch of sophistication to the core design thanks to the included Light Wings LX fans. An ARGB controller button with predefined lighting effects and colors is integrated into the I/O panel. The preinstalled rear fan and daisy-chained side fans are connected to a 6-way ARGB and PWM hub, leaving 4 free connectors for additional devices.

• Angled slide-out fan frame on the side routes air directly to the GPU
• Fans can be installed in the lowered fan bay to line up perfectly with the case floor
• 4 preinstalled Light Wings LX 120mm PWM fans for extraordinary airflow and impressive illumination
• ARGB controller button and ARGB fan hub
• Spacious design for radiators up to 360mm, and ATX motherboards
• 2 possible PSU positions enable backside connector motherboards
• Dust filters in the side and the bottom

Summary

be quiet! Light Base 500 LX Black. Формат: Midi Tower, Тип: ПК, Цвет товара: Черный. Поддерживаемые форм-факторы блока питания: ATX, PS2. Установленные вентиляторы (боковая панель): 3x 120 mm, Поддерживаемые диаметры вентиляторов (боковая панель): 120 mm, Установленные вентиляторы (задняя панель): 1x 120 mm. Поддерживаемые размеры жесткого диска: 2.5,3.5. Ширина: 305 mm, Глубина: 432 mm, Высота: 436 mm

Vendor Homepage

https://www.bequiet.com/en/case/6693

Category Code

CAS

Анти-пылевой фильтр

Да

Боквое окно

Да

Кнопка включения/выключения

Да

Кнопка сброса установок

Да

Количество 2.5 слотов

2

Количество 3.5 отсеков

1

Количество расширительных разъемов

7

Максимальная высота кулера процессора

185 mm

Максимальная длина блока питания

200 mm

Максимальная длина графического адаптера

400 mm

Материал

АБС-пластик/Стальной/Стекло

Освещение

Да

Поддерживаемые форм-факторы материнской платы

ATX/Mini-ITX/Микро ATX

Подходит для

Игровой

Расположение подсветки

Корпусные вентиляторы

Светодиодные индикаторы

Да

Тип

ПК

Усовершенствованное управление кабелями

Да

Формат

Midi Tower

Цвет освещения

Мульти

Цвет товара

Черный

Блок питания в комплекте

Нет

Поддерживаемые форм-факторы блока питания

ATX/PS2

Вход аудио

Да

Выход аудио

Да

Количество портов USB 3.2 Gen 2 (3.1 Gen 2) Type-A

2

Количество портов USB 3.2 Gen 2 (3.1 Gen 2) Type-С

1

возможность жидкостного охлаждения

Да

Максимальное давление воздуха

1.34 mmH2O

Максимальное количество вентиляторов (боковая панель)

3

Максимальное количество вентиляторов (верхняя панель)

3

Максимальное количество вентиляторов (задняя панель)

1

Максимальное количество вентиляторов (нижняя панель)

3

Максимальный воздушный поток

51.5 cfm

Поддерживаемые диаметры вентиляторов (боковая панель)

120 mm

Поддерживаемые диаметры вентиляторов (верхняя панель)

120/140 mm

Поддерживаемые диаметры вентиляторов (задняя панель)

120/140 mm

Поддерживаемые диаметры вентиляторов (нижняя панель)

120 mm

Поддерживаемые размеры боковых радиаторов

120/240 mm

Поддерживаемые размеры заднего радиатора

120 mm

Поддерживаются верхние размеры радиаторов

120/240/280/360 mm

Поддержка широтно-импульсной модуляции (ШИМ)

Да

Скорость вращения вентилятора

1500 - 1600 RPM

Установленные вентиляторы (боковая панель)

3x 120 mm

Установленные вентиляторы (задняя панель)

1x 120 mm

Поддерживаемые размеры жесткого диска

2.5/3.5

Compliance certificates

CE/Electronic Industries Alliance (EIA)/RoHS/UKCA/WEEE

Сертификаты устойчивого развития

Triman

Вес

10950 g

Высота

436 mm

Глубина

432 mm

Ширина

305 mm

Высота упаковки

493 mm

Глубина упаковки

515 mm

Масса брутто

14600 g

Ширина упаковки

388 mm

Объем

0.099 м3

Количество в транспортной упаковке

1

Вес в упаковке

14.6 кг
