Case|NZXT|H5 Flow|MidiTower|Case product features Transparent panel|Not included|ATX|EATX|MicroATX|MiniITX|Colour White|CC-H52FW-01

H5 Flow

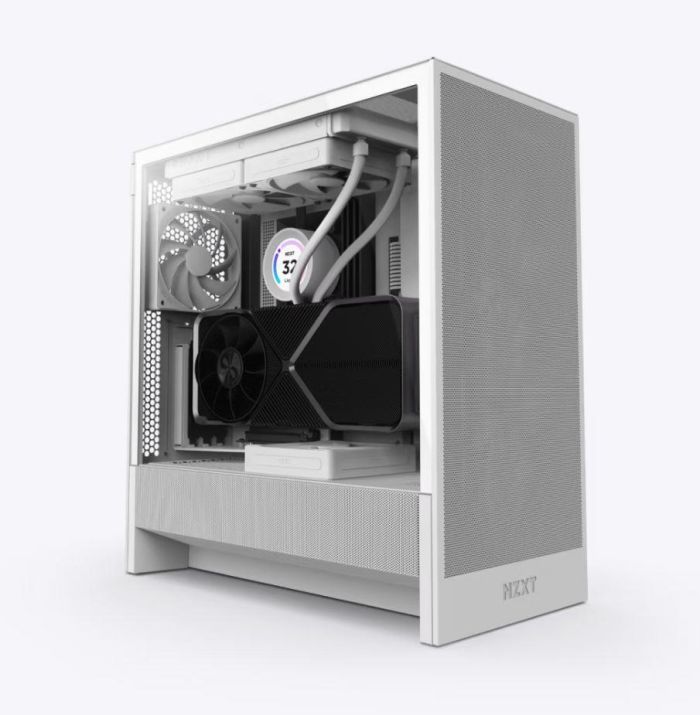

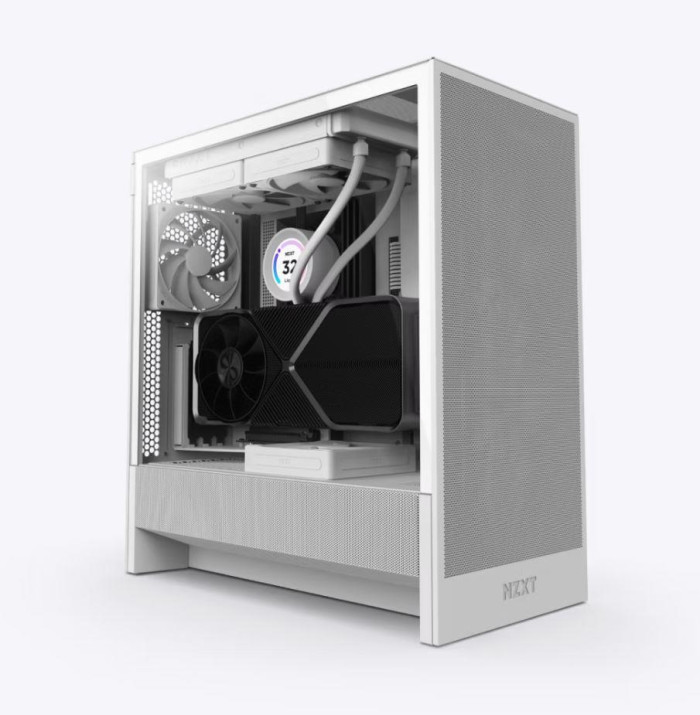

Compact Mid-Tower ATX Airflow Case - The H5 Flow boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support—all in a compact mid-tower form factor.
- The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).
- Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.
- Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.
- Equipped with two 120mm Quiet Airflow fans (CV) —one in front, one in rear—for solid out-of-the-box performance.
- Effortlessly route and conceal cables using the wide channels, hooks, and straps.

Description

H5 Flow

Compact Mid-Tower ATX Airflow Case - The H5 Flow boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support—all in a compact mid-tower form factor.
- The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).
- Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.
- Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.
- Equipped with two 120mm Quiet Airflow fans (CV) —one in front, one in rear—for solid out-of-the-box performance.
- Effortlessly route and conceal cables using the wide channels, hooks, and straps.

Vendor Homepage

nzxt.com/product/h5-flow

Model

CC-H52FW-01

Model name

H5 Flow

Case Type

MidiTower

Case product features

Transparent panel

PSU

Not included

ATX

Yes

EATX

Yes

MicroATX

Yes

MiniITX

Yes

2.5 Internal

2

3.5 Internal

1

Number of expansion slots

7

Headphones jack

1

USB 3.2

1

USB-C

1

Colour

White

Dimensions

465 x 225 x 430 mm

Unit Calculated Volume

0.089466 cubm

Units per Shipping Box

1

Shipping Box Depth

55.5 cm

Shipping Box Height

52 cm

Shipping Box Weight

9 kg

Shipping Box Width

31 cm

Product Net Weight

7.28 kg

Unit Calculated Weight

9 kg

CnCode

84733080

Unit Box Width

0.31

Unit Box Length

0.555

Unit Box Height

0.52

Full Description Line

H5 Flow|MidiTower|PSU Not included|Dimensions 465 x 225 x 430 mm

Category Code

CAS
