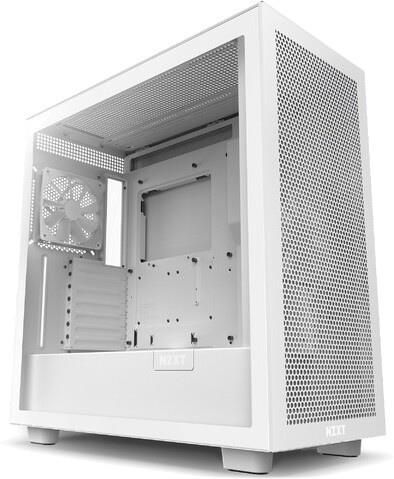

Case|NZXT|H7 Flow|MidiTower|ATX|EATX|MicroATX|MiniITX|Colour White|CM-H72FW-01

The H7 Flow revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.

• Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint.
• Comes equipped with three front-mounted 120mm fans for exceptional out-of-the-box cooling.
• High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
• Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential.
• Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
• Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
• Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
• Tool-less access to the front, top, and side panels makes building and upgrading a breeze.

Description

The H7 Flow revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.

• Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint.
• Comes equipped with three front-mounted 120mm fans for exceptional out-of-the-box cooling.
• High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
• Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential.
• Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
• Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
• Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
• Tool-less access to the front, top, and side panels makes building and upgrading a breeze.

Vendor Homepage

nzxt.com/product/h7-flow

Category Code

CAS

CnCode

84733080

Unit Box Height

0.57

Unit Box Length

0.63

Unit Box Width

0.325

ATX

Yes

EATX

Yes

MicroATX

Yes

MiniITX

Yes

2.5 Internal

4

3.5 External

2

Headphones jack

1

USB 3.2

2

USB-C

1

Model name

H7 Flow

Case Type

MidiTower

Number of expansion slots

7

Optional Accessories

F120Q Airflow Fan (pre-installed, case version)
Installation Accessories
Manual

Colour

White

Dimensions

544 x 244 x 468 mm

Units per Shipping Box

1

Unit Calculated Volume

0.1167 cubm

Product Net Weight

11.13 kg

Unit Calculated Weight

14 kg
