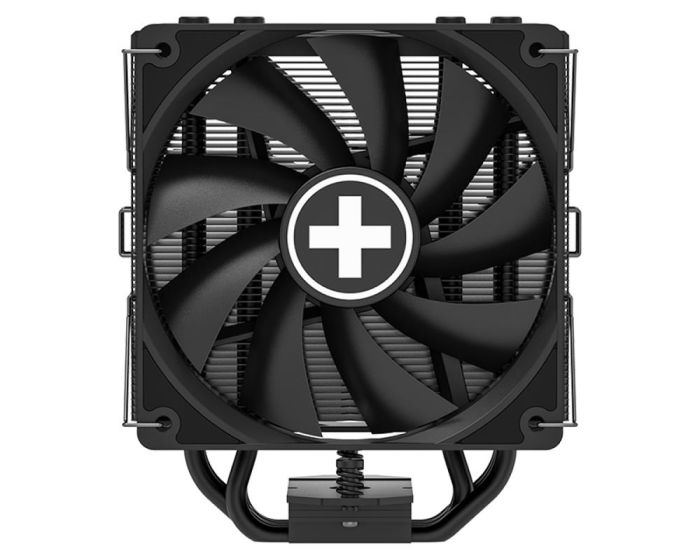

CPU COOLER MULTI SOCKET/M705D XC061 XILENCE

XC061 | M705D


The compact M705D is a tower cooler with double fan from the A+ series. It has four extremely powerful black heat pipes, which dissipate 220W of waste heat to the countless cooling fins and thus predestine it for potent multi-core

processors. Due to the direct contact of the heat pipes, the heat transfer between CPU and cooler is extremely efficient and very even. Suitable for cooling processors with very high levels of waste heat.

The multi-socket means that the cooler can be used on all current Intel and AMD sockets. In addition to the double heat sink and the two PWM-controlled 120mm fans, the scope of delivery includes a holding module for the LGA socket

1700/2066/2011/1200/1151/1150/1155/1156 / and AMD AM4, illustrated assembly instructions and a tube of thermal paste.

- Elegant black design with top cover
- One heat sink with lamellar design ensure efficient cooling of the CPU and all surrounding components
- Two black 120mm PWM fans, liquid-stored
- Five 6mm copper heat pipes for maximum heat dissipation
- Hotspots are avoided by slightly protruding the fans on the top and bottom
- The fans can be mounted on both sides of the heat sinks
- Suitable for all common AMD & INTEL sockets

Description

XC061 | M705D


The compact M705D is a tower cooler with double fan from the A+ series. It has four extremely powerful black heat pipes, which dissipate 220W of waste heat to the countless cooling fins and thus predestine it for potent multi-core

processors. Due to the direct contact of the heat pipes, the heat transfer between CPU and cooler is extremely efficient and very even. Suitable for cooling processors with very high levels of waste heat.

The multi-socket means that the cooler can be used on all current Intel and AMD sockets. In addition to the double heat sink and the two PWM-controlled 120mm fans, the scope of delivery includes a holding module for the LGA socket

1700/2066/2011/1200/1151/1150/1155/1156 / and AMD AM4, illustrated assembly instructions and a tube of thermal paste.

- Elegant black design with top cover
- One heat sink with lamellar design ensure efficient cooling of the CPU and all surrounding components
- Two black 120mm PWM fans, liquid-stored
- Five 6mm copper heat pipes for maximum heat dissipation
- Hotspots are avoided by slightly protruding the fans on the top and bottom
- The fans can be mounted on both sides of the heat sinks
- Suitable for all common AMD & INTEL sockets

Vendor Homepage

www.xilence.net/en/cpu-coolers/208

Model name

M705D

Cooler type

Air

Socket

LGA1150/LGA1151/LGA1155/LGA1156/LGA1200/LGA1700/LGA2011/LGA2066/SAM4/SAM5

Cooler base material

Copper

Radiator material

Aluminum

Fan size group

120mm

Bearing type

Fluid

Fan speed

700 - 1600 ± 10%

Number of fans

2

Air flow

70 cfm

Thermal Design Power (TDP)

220 Watts

Noise level, max

32.5 dB

Dimensions

128 x 108 x 150mm

Mainboard connection

4-pin

Units per Shipping Box

1

Shipping Box Depth

22 cm

Shipping Box Height

16 cm

Shipping Box Weight

1.183 kg

Shipping Box Width

12 cm

Unit Calculated Volume

0.004224 cubm

Product Net Weight

0.685 kg

Unit Calculated Weight

1.18 kg

Unit Box Width

0.12

Unit Box Length

0.22

Unit Box Height

0.16

Full Description Line

M705D|Air|LGA1150/LGA1151/LGA1155/LGA1156/LGA1200/LGA1700/LGA2011/LGA2066/SAM4/SAM5|Fan speed 700 - 1600 ± 10%|Air flow 70 cfm|TDP 220 Watts|Noise level, max 32.5 dB|Dimensions 128 x 108 x 150mm|Weight 0.685 kg

Category Code

COC
