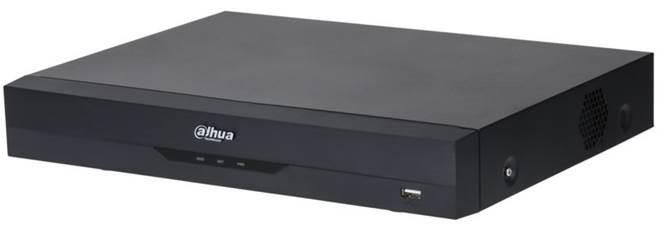

DVR 16CH HDCVI PENTABRID AI/XVR5116HS-I3 DAHUA

Pentabrid capability: Each channel supports up to 6MP: IP, HDCVI, AHD, TVI and CVBS access can be configured

16-channel BNC interface

Recording: HDCVI/AHD/HD-TVI recording:, 5MP, 4MP, 3MP, 2MP

All channel 5M-N (1 fps–10 fps); 4M-N/1080P (1 fps–15fps); 1080N/720P/960H/D1/CIF (1fps–25/30 fps)

IP: 16+8 channels, each channel up to 6MP, Max 128 Mbps incoming bandwidth

AI Coding/H.265+/H.265/H.264+/H.264 video compression

G.711A, G.711U, PCM audio compression,

1x SATA interface up to 16 TB storage

VGA/HDMI up to 4K output

RJ-45, 2x USB ports, RS485

No front panel control, 1/1 Audio I/O, no Alarm I/O, Audio over Coax for 8 channels

Mini 1U case, mouse included

ONVIF 16.12, CGI Conformant, Smart Search

Third-party IP camera support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

AI: Up to 2 channels video stream (analog channel) Perimeter Protection

Up to 16 channels video stream (analog channel) SMD Plus

Up to 2 channels video stream (analog channel) human face recognition

IoT & POS functionalities

Free IP monitoring software available

Description

Pentabrid capability: Each channel supports up to 6MP: IP, HDCVI, AHD, TVI and CVBS access can be configured

16-channel BNC interface

Recording: HDCVI/AHD/HD-TVI recording:, 5MP, 4MP, 3MP, 2MP

All channel 5M-N (1 fps–10 fps); 4M-N/1080P (1 fps–15fps); 1080N/720P/960H/D1/CIF (1fps–25/30 fps)

IP: 16+8 channels, each channel up to 6MP, Max 128 Mbps incoming bandwidth

AI Coding/H.265+/H.265/H.264+/H.264 video compression

G.711A, G.711U, PCM audio compression,

1x SATA interface up to 16 TB storage

VGA/HDMI up to 4K output

RJ-45, 2x USB ports, RS485

No front panel control, 1/1 Audio I/O, no Alarm I/O, Audio over Coax for 8 channels

Mini 1U case, mouse included

ONVIF 16.12, CGI Conformant, Smart Search

Third-party IP camera support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

AI: Up to 2 channels video stream (analog channel) Perimeter Protection

Up to 16 channels video stream (analog channel) SMD Plus

Up to 2 channels video stream (analog channel) human face recognition

IoT & POS functionalities

Free IP monitoring software available

Vendor Homepage

www.dahuasecurity.com/ceen/products/All-Products/HDCVI-Recorders/Lite-AI-Series/I3-Series/4K-N/5MP-Series/XVR5108HS-4KL-I3

DVR type

8 Channel

SATA

Yes

USB

Yes

Camera Compatibility

AHD 5MP/Analog/HDCVI 1080P/HDCVI 4MP/HDCVI 720P/HDCVI 8MP/HD-TVI/TurboHD 5MP/IP

15pin D-sub

1

Audio-In

1

Audio-Out

1

HDMI

1

Power supply requirements

DC12V, 2A

Dimensions

260.0 mm × 237.4 mm × 47.6 mm

Units per Shipping Box

1

Shipping Box Depth

33.5 cm

Shipping Box Height

31.5 cm

Shipping Box Weight

1.54 kg

Shipping Box Width

9 cm

Unit Calculated Volume

0.009497 cubm

Product Net Weight

0.9 kg

Unit Calculated Weight

1.54 kg

Unit Box Width

0.09

Unit Box Length

0.335

Unit Box Height

0.315

Full Description Line

8 Channel|Camera Compatibility Analog/IP/AHD 5MP/HDCVI 720P/HDCVI 1080P/HDCVI 4MP/HDCVI 8MP/HD-TVI/TurboHD 5MP|SATA|USB|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|DC12V, 2A

Category Code

STD
