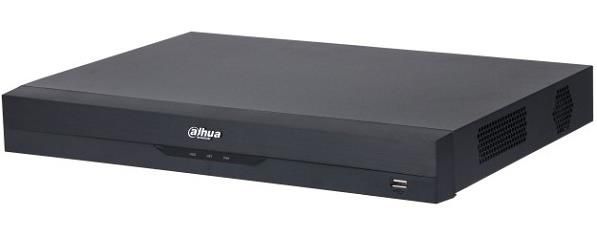

DVR 16CH HDCVI PENTABRID AI/XVR5216AN-I3 DAHUA

Pentabrid capability: Each channel supports up to 5MP: HDCVI, AHD, TVI, CVBS and 6MP IP Video input, Auto-detect

16-channel BNC interface

HDCVI/AHD/HD-TVI recording: 5MP, 4MP, 1080P@25/30 fps, 720P@50/60 fps, 720P@25/30 fps.

Record: 5M-N (1 fps–10 fps); 4M-N/1080P (1 fps–15fps); 1080N/720P/960H/D1/CIF (1fps–25/30 fps)

IP: 16+8 channels, each channel up to 6MP; Max 128Mbps Incoming Bandwidth

AI Coding/H.265+/H.265/H.264+/H.264 video compression

G.711A, G.711U, PCM audio compression,

2x SATA interfaces up to 32 TB total storage

VGA/HDMI up to 3840×2160 output

RJ-45 1GB, 2x USB ports, RS485

No front panel control, 1/1 Audio I/O, no Alarm I/O

Full size 1U case, mouse included

ONVIF 16.12, CGI Conformant, Coax audio, IoT & POS support

Third-party IP camera support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Up to 2 channels video stream ( analog channel ) Perimeter Protection

Up to 16 channels video stream ( analog channel ) SMD Plus

Up to 2 channels video stream (analog channel ) human face recognition

IoT & POS functionalities

Free IP monitoring software available

Description

Pentabrid capability: Each channel supports up to 5MP: HDCVI, AHD, TVI, CVBS and 6MP IP Video input, Auto-detect

16-channel BNC interface

HDCVI/AHD/HD-TVI recording: 5MP, 4MP, 1080P@25/30 fps, 720P@50/60 fps, 720P@25/30 fps.

Record: 5M-N (1 fps–10 fps); 4M-N/1080P (1 fps–15fps); 1080N/720P/960H/D1/CIF (1fps–25/30 fps)

IP: 16+8 channels, each channel up to 6MP; Max 128Mbps Incoming Bandwidth

AI Coding/H.265+/H.265/H.264+/H.264 video compression

G.711A, G.711U, PCM audio compression,

2x SATA interfaces up to 32 TB total storage

VGA/HDMI up to 3840×2160 output

RJ-45 1GB, 2x USB ports, RS485

No front panel control, 1/1 Audio I/O, no Alarm I/O

Full size 1U case, mouse included

ONVIF 16.12, CGI Conformant, Coax audio, IoT & POS support

Third-party IP camera support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Up to 2 channels video stream ( analog channel ) Perimeter Protection

Up to 16 channels video stream ( analog channel ) SMD Plus

Up to 2 channels video stream (analog channel ) human face recognition

IoT & POS functionalities

Free IP monitoring software available

Vendor Homepage

www.dahuasecurity.com/ceen/products/All-Products/HDCVI-Recorders/Lite-AI-Series/I3-Series/5M-N/1080P-Series/XVR5216AN-I3

DVR type

16 Channel

SATA

Yes

USB

Yes

Camera Compatibility

AHD 5MP/Analog/HDCVI 1080P/HDCVI 4MP/HDCVI 720P/HD-TVI/TurboHD 5MP/IP

Audio-In

1

Audio-Out

1

Power supply requirements

DC12V, 4A

Dimensions

375.0 mm × 289.0 mm × 53.0 mm

Units per Shipping Box

1

Shipping Box Depth

43.5 cm

Shipping Box Height

36 cm

Shipping Box Weight

2.9 kg

Shipping Box Width

14 cm

Unit Calculated Volume

0.02192 cubm

Product Net Weight

1.56 kg

Unit Calculated Weight

2.9 kg

Unit Box Width

0.14

Unit Box Length

0.435

Unit Box Height

0.36

Full Description Line

16 Channel|Camera Compatibility Analog/IP/AHD 5MP/HDCVI 720P/HDCVI 1080P/HDCVI 4MP/HD-TVI/TurboHD 5MP|SATA|USB|1xAudio-In|1xAudio-Out|DC12V, 4A

Category Code

STD
