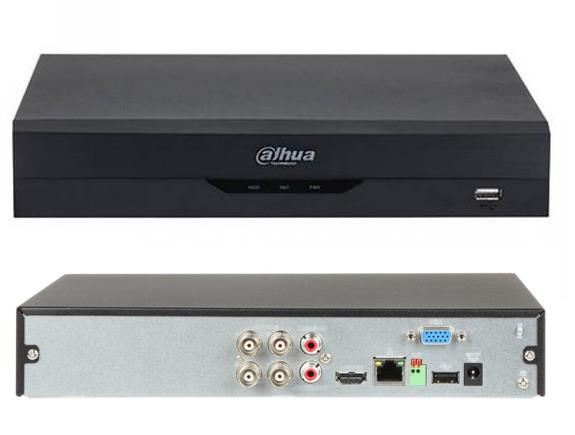

DVR 4CH HDCVI PENTABRID AI/XVR5104HS-I3 DAHUA

4 Channel Penta-brid 5M-N/1080p Mini 1U 1HDD WizSense Digital Video Recorder

HDCVI Camera Input: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 50/60 fps, 720p@ 25/30 fps

AHD Camera Input: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 25/30 fps

TVI Camera Input: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 25/30 fps

CVBS Camera Input: PAL/NTSC

IP Camera Input: 4+2 channels, each channel up to 6MP

Recording: All channel 5M-N (1 fps–10 fps); 4M-N/1080p (1 fps–15 fps); 1080N/720p/960H/D1/CIF (1 fps–25/30 fps)

Max 6 channels IP camera inputs, each channel up to 6MP; Max 32 Mbps incoming bandwidth

AI Coding/H.265+/H.265/H.264+/H.264 video compression

Audio In/Out: 1/1, RCA, G.711A, G.711U, PCM audio compression

1x SATA interface up to 6 TB storage

VGA/HDMI up to Full HD output

RJ-45, 2x USB ports, RS485

No front panel control, No Alarm I/O

Compact 1U case, mouse included

ONVIF 16.12, CGI Conformant, Smart Search, Coax audio support

Third-party IP camera support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Human/Vehicle secondary recognition for tripwire and intrusion, Search by target classification (Human, Vehicle)

Up to 1 channel video stream ( analog channel ) Perimeter Protection

Up to 4 channels video stream ( analog channel ) SMD Plus

Up to 1 channel video stream (analog channel ) human face recognition

IoT & POS functionalities

Free IP monitoring software available

Description

4 Channel Penta-brid 5M-N/1080p Mini 1U 1HDD WizSense Digital Video Recorder

HDCVI Camera Input: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 50/60 fps, 720p@ 25/30 fps

AHD Camera Input: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 25/30 fps

TVI Camera Input: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 25/30 fps

CVBS Camera Input: PAL/NTSC

IP Camera Input: 4+2 channels, each channel up to 6MP

Recording: All channel 5M-N (1 fps–10 fps); 4M-N/1080p (1 fps–15 fps); 1080N/720p/960H/D1/CIF (1 fps–25/30 fps)

Max 6 channels IP camera inputs, each channel up to 6MP; Max 32 Mbps incoming bandwidth

AI Coding/H.265+/H.265/H.264+/H.264 video compression

Audio In/Out: 1/1, RCA, G.711A, G.711U, PCM audio compression

1x SATA interface up to 6 TB storage

VGA/HDMI up to Full HD output

RJ-45, 2x USB ports, RS485

No front panel control, No Alarm I/O

Compact 1U case, mouse included

ONVIF 16.12, CGI Conformant, Smart Search, Coax audio support

Third-party IP camera support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Human/Vehicle secondary recognition for tripwire and intrusion, Search by target classification (Human, Vehicle)

Up to 1 channel video stream ( analog channel ) Perimeter Protection

Up to 4 channels video stream ( analog channel ) SMD Plus

Up to 1 channel video stream (analog channel ) human face recognition

IoT & POS functionalities

Free IP monitoring software available

Vendor Homepage

www.dahuasecurity.com/products/All-Products/HDCVI-Recorders/WizSense-Series/I3-Series/5M-N/1080P-Series/XVR5104HS-I3

DVR type

4 Channel

RS-485

Yes

SATA

Yes

USB

Yes

Camera Compatibility

AHD 5MP/Analog/HDCVI 1080P/HDCVI 4MP/HDCVI 720P/HD-TVI/TurboHD 5MP/IP

Audio-In

1

Audio-Out

1

RJ45

1

Units per Shipping Box

1

Shipping Box Depth

33.5 cm

Shipping Box Height

31.5 cm

Shipping Box Weight

1.36 kg

Shipping Box Width

9 cm

Unit Calculated Volume

0.009497 cubm

Product Net Weight

1 kg

Unit Calculated Weight

1.36 kg

Unit Box Width

0.09

Unit Box Length

0.335

Unit Box Height

0.315

Full Description Line

4 Channel|Camera Compatibility Analog/IP/AHD 5MP/HDCVI 720P/HDCVI 1080P/HDCVI 4MP/HD-TVI/TurboHD 5MP|SATA|USB|RS-485|1xAudio-In|1xAudio-Out|1xRJ45

Category Code

STD
