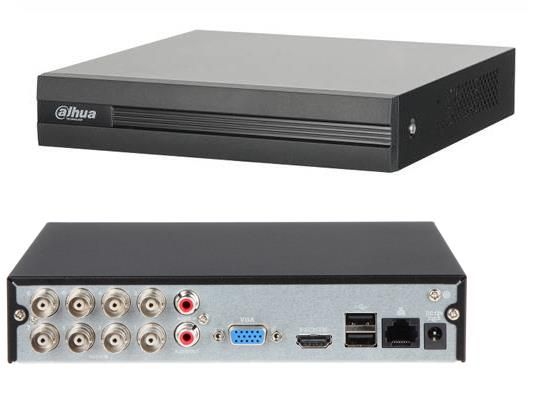

DVR 8CH HDCVI PENTABRID/XVR1B08-I DAHUA

8 Channel Penta-brid 1080N/720p Cooper 1U 1HDD WizSense Digital Video Recorder


Pentabrid capability: Each channel supports HDCVI, AHD, TVI, CVBS and IP Video input

8-channel BNC interface

HDCVI/AHD/HD-TVI recording: the 1st channel 1080N/720p(1 fps–25/30 fps), others 1080N/720p(1 fps–15 fps); 960H/D1/CIF/(1 fps–25/30 fps)

IP: Max 10 channels IP camera inputs, each channel up to 6MP; Max 40 Mbps incoming bandwidth

Video Compression: AI Coding/H.265+/H.265/H.264+/H.264, ONVIF 16.12, CGI Conformant

SMD Plus: 4 channels, Search by target classification (Human, Vehicle)

G.711A; G.711U; PCM video/audio compression

1x SATA interface up to 6TB storage

VGA/HDMI up to Full HD output, RJ-45, 2x USB ports

No front panel control, 1/1 Audio I/O, no Alarm I/O

Mini 1U case, mouse included

P2P, Coaxial Audio/Alarm/Upgrade

Third-party IP camera support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Free IP monitoring software available

Description

8 Channel Penta-brid 1080N/720p Cooper 1U 1HDD WizSense Digital Video Recorder


Pentabrid capability: Each channel supports HDCVI, AHD, TVI, CVBS and IP Video input

8-channel BNC interface

HDCVI/AHD/HD-TVI recording: the 1st channel 1080N/720p(1 fps–25/30 fps), others 1080N/720p(1 fps–15 fps); 960H/D1/CIF/(1 fps–25/30 fps)

IP: Max 10 channels IP camera inputs, each channel up to 6MP; Max 40 Mbps incoming bandwidth

Video Compression: AI Coding/H.265+/H.265/H.264+/H.264, ONVIF 16.12, CGI Conformant

SMD Plus: 4 channels, Search by target classification (Human, Vehicle)

G.711A; G.711U; PCM video/audio compression

1x SATA interface up to 6TB storage

VGA/HDMI up to Full HD output, RJ-45, 2x USB ports

No front panel control, 1/1 Audio I/O, no Alarm I/O

Mini 1U case, mouse included

P2P, Coaxial Audio/Alarm/Upgrade

Third-party IP camera support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Free IP monitoring software available

Vendor Homepage

www.dahuasecurity.com/products/All-Products/HDCVI-Recorders/WizSense-Series/I3-Series/Cooper-I-Series/XVR1B08-I

DVR type

8 Channel

Camera Compatibility

AHD 1080P/Analog/HDCVI 1080P/HDCVI 720P/HD-TVI/TurboHD 1080P/HD-TVI/TurboHD 720P

Number of channels

8

15pin D-sub

1

Audio-In

1

Audio-Out

1

HDMI

1

RJ45

1

Power supply requirements

DC 12 V/1.5 A

Dimensions

198 × 202.9 × 41.5mm

Units per Shipping Box

1

Shipping Box Depth

33 cm

Shipping Box Height

10 cm

Shipping Box Weight

1.14 kg

Shipping Box Width

25.5 cm

Unit Calculated Volume

0.008415 cubm

Product Net Weight

0.62 kg

Unit Calculated Weight

1.14 kg

Unit Box Width

0.255

Unit Box Length

0.33

Unit Box Height

0.1

Full Description Line

8 Channel|Camera Compatibility Analog/AHD 1080P/HDCVI 720P/HDCVI 1080P/HD-TVI/TurboHD 720P/HD-TVI/TurboHD 1080P|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|1xRJ45|DC 12 V/1.5 A

Category Code

STD
