Graphics Card|MSI|NVIDIA GeForce RTX 5060 Ti|16 GB|GDDR7|128 bit|PCIE 5.0 16x|Triple slot Fansink|1xHDMI|3xDisplayPort|RTX5060TI16GVEN3XOC

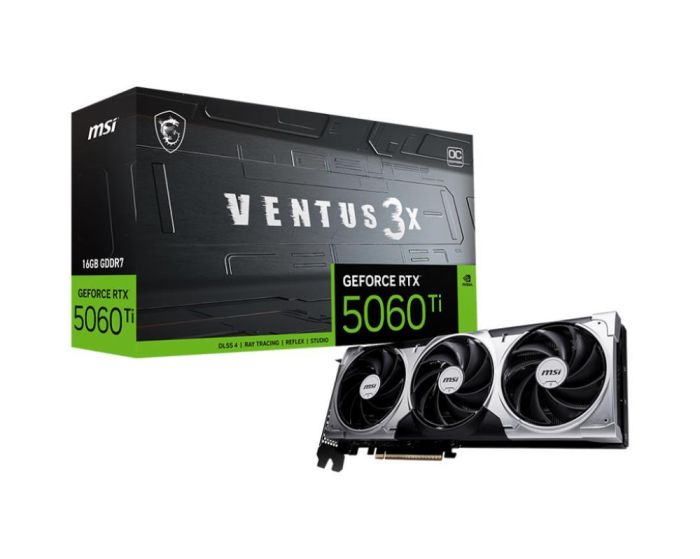

MSI GeForce RTX 5060 Ti 16G VENTUS 3X OC - Powered by the NVIDIA Blackwell architecture and DLSS 4
- Core Clocks:

Extreme Performance: 2617 MHz (MSI Center)

Boost: 2602 MHz
- TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
- Solid Baseplate: A solid baseplate transfers heat from the GPU to all heat pipes for better cooling.
- Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.
- Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.

Description

MSI GeForce RTX 5060 Ti 16G VENTUS 3X OC - Powered by the NVIDIA Blackwell architecture and DLSS 4
- Core Clocks:

Extreme Performance: 2617 MHz (MSI Center)

Boost: 2602 MHz
- TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
- Solid Baseplate: A solid baseplate transfers heat from the GPU to all heat pipes for better cooling.
- Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.
- Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.

Vendor Homepage

www.msi.com/Graphics-Card/GeForce-RTX-5060-Ti-16G-VENTUS-3X-OC/Specification

Model

G506T-16V3C

Chipset

NVIDIA GeForce RTX 5060 Ti

Graphics memory size

16 GB

Graphics memory type

GDDR7

Memory bus

128 bit

Graphics connector

PCIE 5.0 16x

Memory CLK

28 Gbps

GPU boost clock

2617 MHz

CUDA Cores

4608

Max resolution

7680x4320

Graphic card features

Gaming/HDCP/Overclock Edition

Cooling system

Triple slot Fansink

DisplayPort

3

HDMI

1

Power consumption

180 Watts

Power connectors

8 pin

Card's length

> 280 mm

Dimensions

304 x 121 x 44 мм

Unit Calculated Volume

0.008127 cubm

Units per Shipping Box

12

Shipping Box Depth

54 cm

Shipping Box Height

42 cm

Shipping Box Weight

16.2 kg

Shipping Box Width

43 cm

Product Net Weight

0.86 kg

Unit Calculated Weight

1.35 kg

CnCode

84718000

Unit Box Width

0.205

Unit Box Length

0.39

Unit Box Height

0.085

Full Description Line

NVIDIA GeForce RTX 5060 Ti|Graphics memory size 16 GB|GDDR7|128 bit|PCIE 5.0 16x|Memory CLK 28 Gbps|GPU boost clock 2617 MHz|7680x4320|Cooling Triple slot Fansink|1xHDMI|3xDisplayPort

Category Code

VGP
