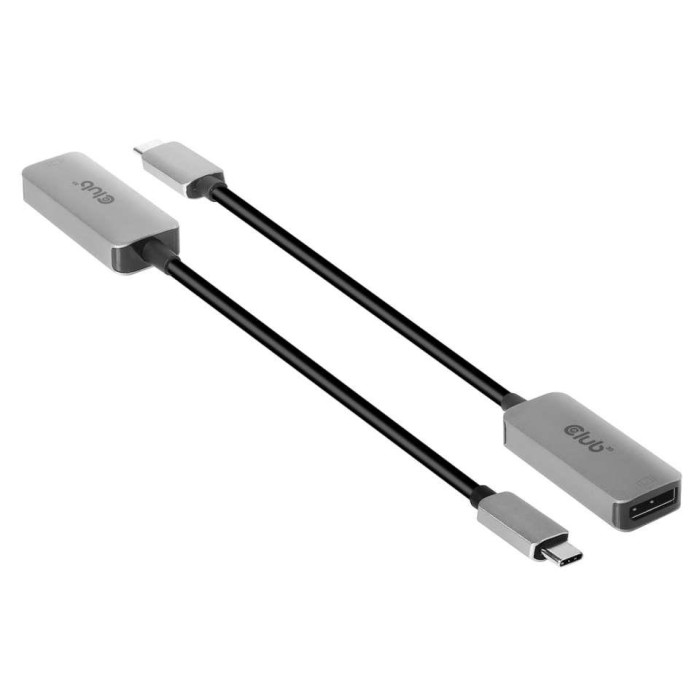

I/O ADAPTER USB-C TO DP/M/F CAC-1567 CLUB3D

USB Type C to DisplayPort 1.4 8K60Hz HBR3 Active Adapter.

The CAC-1567 Club 3D USB Type C to DisplayPort™ 1.4 Adapter 8K60Hz provided the source supports DSC1.2 HBR3 allows you to connect any USB Type C source to DisplayPort™ display at max 8K60Hz resolution and HDR support.


It works on any USB Type C host that supports DP 1.4/DP 1.2 Alt mode, resolutions are limited to the source device. When working on Thunderbolt™ 3 host, this product transmits DP signal.

The soft UltraFlex jacket protects the cable from bends and deformation damage. The Cable is 34AWG and Uni-Directional.
• Supports USB Type C input and DisplayPort™ output
• Supports DisplayPort™ resolutions up to 7680x4320@60Hz HDR, provided the source supports DSC1.2 and DP Alt-Mode 1.4
• Supports DisplayPort™ 1.4/1.2 Alt mode
• Compliant to Thunderbolt 3 specifications
• Supports per lane data rates of 8.1Gbps(HBR3), 5.4Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR)
• Support up to 48 bit (16bit per channel) deep color
• Supports content protection of HDCP1.4 & HDCP 2.2
• USB bus power (no external power supply)

Description

USB Type C to DisplayPort 1.4 8K60Hz HBR3 Active Adapter.

The CAC-1567 Club 3D USB Type C to DisplayPort™ 1.4 Adapter 8K60Hz provided the source supports DSC1.2 HBR3 allows you to connect any USB Type C source to DisplayPort™ display at max 8K60Hz resolution and HDR support.


It works on any USB Type C host that supports DP 1.4/DP 1.2 Alt mode, resolutions are limited to the source device. When working on Thunderbolt™ 3 host, this product transmits DP signal.

The soft UltraFlex jacket protects the cable from bends and deformation damage. The Cable is 34AWG and Uni-Directional.
• Supports USB Type C input and DisplayPort™ output
• Supports DisplayPort™ resolutions up to 7680x4320@60Hz HDR, provided the source supports DSC1.2 and DP Alt-Mode 1.4
• Supports DisplayPort™ 1.4/1.2 Alt mode
• Compliant to Thunderbolt 3 specifications
• Supports per lane data rates of 8.1Gbps(HBR3), 5.4Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR)
• Support up to 48 bit (16bit per channel) deep color
• Supports content protection of HDCP1.4 & HDCP 2.2
• USB bus power (no external power supply)

Vendor Homepage

www.club-3d.com/en/detail/2487/usb_type_c_to_displayport_1.4_8k60hz_hbr3_active_adapter/

Category Code

IOC

Unit Box Height

0.24

Unit Box Length

0.06

Unit Box Width

0.035

USB тип C

1

Выход DisplayPort

1

Модель

CAC-1567

Тип продукта

Adapter

Количество в палете

0

Количество в транспортной упаковке

1

Объем

0.000504 м3

Вес без упаковки

0.024 кг

Вес в упаковке

0.05 кг
