Mainboard|ASUS|AMD A520|SAM4|Micro-ATX|Memory DDR4|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|1xHDMI|2xUSB 2.0|4xUSB 3.1|2xPS/2|1xRJ45|3xAudio port|PRIMEA520M-R

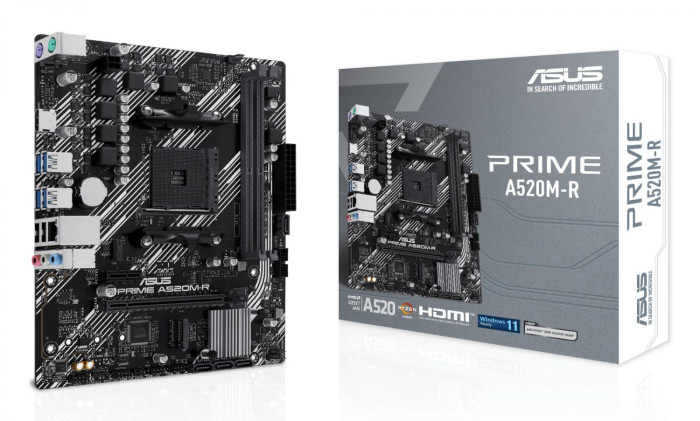

PRIME A520M-R

AMD A520 (Ryzen™ AM4) micro-ATX motherboard with M.2 support, Realtek 1Gb Ethernet, HDMI™, SATA 6 Gbps, rear and front USB 5Gbps support

• AMD AM4 Socket: Ready for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
• Ultrafast Connectivity: M.2 support, 1Gb Ethernet, rear and front USB 5Gbps support
• Comprehensive Cooling: PCH heatsink and Fan Xpert
• 5X Protection III: Multiple hardware safeguards for all-around system protection

Description

PRIME A520M-R

AMD A520 (Ryzen™ AM4) micro-ATX motherboard with M.2 support, Realtek 1Gb Ethernet, HDMI™, SATA 6 Gbps, rear and front USB 5Gbps support

• AMD AM4 Socket: Ready for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
• Ultrafast Connectivity: M.2 support, 1Gb Ethernet, rear and front USB 5Gbps support
• Comprehensive Cooling: PCH heatsink and Fan Xpert
• 5X Protection III: Multiple hardware safeguards for all-around system protection

Vendor Homepage

www.asus.com/motherboards-components/motherboards/prime/prime-a520m-r/

Category Code

MBA

Unit Box Height

0.29

Unit Box Length

0.57

Unit Box Width

0.028

M.2

1

PCI-Express 3.0 16x

1

PCI-Express 3.0 1x

1

RJ45

1

USB 3.1

Да

Аудио порт

3

Выход HDMI

1

Наличие PS/2

2

Наличие USB 2.0

Да

Наличие SATA

Да

Модель

PRIME A520M-R

Чипсет

AMD A520

Socket

SAM4

Форм-фактор

Micro-ATX

Тип оперативной памяти

DDR4

Частота работы оперативной памяти

2133/2400/2666/2800/2933/3000/3200/3333/3400/3466/3600/3733/3866/4000/4133/4200/4266/4333/4400/4466/4666/4866/5100 МГц

Количество слотов памяти

2 слота

Встроенная видео карта

Depending on CPU

Встроенная звуковая карта

Да

Встроенный сетевой адаптер

Realtek (Gigabit)

RAID

SATA 0, 1, 10; PCIe 0, 1, 10

TPM

Header

Аксессуары в комплекте

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O shield
1 x M.2 anchor
Documentation
1 x Quick start guide

Количество в транспортной упаковке

10

Объем

0.004628 м3

Вес без упаковки

0.5 кг

Вес в упаковке

0.876 кг
