Mainboard|ASUS|AMD A520|SAM4|MicroATX|2xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|Memory DDR4|Memory slots 2|1x15pin D-sub|1xHDMI|2xUSB 2.0|4xUSB 3.2 type B|1xPS/2|3xStereo jack 3.5mm|1xRJ45|PRIMEA520M-K

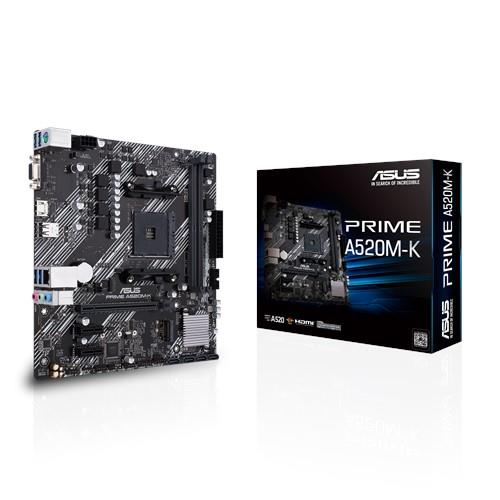

PRIME A520M-K


AMD A520 (Ryzen AM4) micro ATX motherboard with M.2 support, 1 Gb Ethernet, HDMI/D-Sub, SATA 6 Gbps, USB 3.2 Gen 1 Type-A

AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors

Comprehensive cooling: PCH heatsink and Fan Xpert

Ultrafast connectivity: M.2 support, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A

5X Protection III: Multiple hardware safeguards for all-around system protection

Description

PRIME A520M-K


AMD A520 (Ryzen AM4) micro ATX motherboard with M.2 support, 1 Gb Ethernet, HDMI/D-Sub, SATA 6 Gbps, USB 3.2 Gen 1 Type-A

AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors

Comprehensive cooling: PCH heatsink and Fan Xpert

Ultrafast connectivity: M.2 support, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A

5X Protection III: Multiple hardware safeguards for all-around system protection

Vendor Homepage

www.asus.com/Motherboards/PRIME-A520M-K/

Chipset

AMD A520

Socket

SAM4

Form Factor

Micro-ATX

Memory type

DDR4

Frequency speed

2133/2400/2666/2800/3000/3200/3333/3466/3600/3733/3866/4000/4400/4600 MHz

Memory slots

2

M.2

1

PCI-Express 3.0 16x

1

PCI-Express 3.0 1x

2

15pin D-sub

1

HDMI

1

PS/2

1

RJ45

1

Stereo jack 3.5mm

3

USB 2.0

Yes

USB 3.2 type B

4

SATA

Yes

USB 3.2

Yes

Integrated video

Depending on CPU

Integrated audio

Realtek ALC887

RAID

SATA 0, 1, 10

Battery

Lithium CMOS battery

Battery weight

2 g

Units per Shipping Box

1

Shipping Box Depth

27 cm

Shipping Box Height

5 cm

Shipping Box Weight

0.83 kg

Shipping Box Width

26.5 cm

Unit Calculated Volume

0.003577 cubm

Product Net Weight

0.75 kg

Unit Calculated Weight

0.83 kg

Category Code

MBA

Full Description Line

AMD A520|SAM4|Micro-ATX|DDR4|4600/4400/4000/3866/3733/3600/3466/3333/3200/3000/2800/2666/2400/2133 MHz|Memory slots 2|2xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|1x15pin D-sub|1xHDMI|2xUSB 2.0|4xUSB 3.2 type B|1xPS/2|3xStereo jack 3.5mm|1xRJ45|SATA|USB 2.0|USB 3.2|Video Depending on CPU|Audio Realtek ALC887|RAID SATA 0, 1, 10
