Mainboard|ASUS|AMD B650|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|2xPCI-Express 4.0 16x|2xM.2|1xVGA|1xHDMI|1xDisplayPort|4xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|PRIMEB650M-AII-CSM

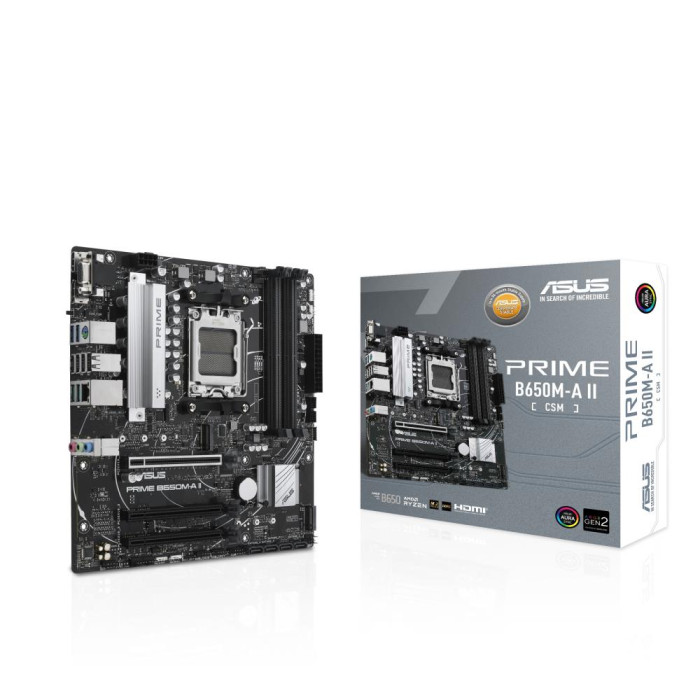

PRIME B650M-A II-CSM

AMD B650 Micro-ATX motherboard with DDR5, PCIe 5.0 M.2, 2.5Gb Ethernet, DisplayPort, HDMI®, VGA, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, BIOS FlashBack™, Aura Sync - Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AM5 Socket for AMD Ryzen™ Desktop Processors
- Ultrafast Connectivity: M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
- ASUS Control Center Express (ACCE) for easier IT endpoint management

Description

PRIME B650M-A II-CSM

AMD B650 Micro-ATX motherboard with DDR5, PCIe 5.0 M.2, 2.5Gb Ethernet, DisplayPort, HDMI®, VGA, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, BIOS FlashBack™, Aura Sync - Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AM5 Socket for AMD Ryzen™ Desktop Processors
- Ultrafast Connectivity: M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
- ASUS Control Center Express (ACCE) for easier IT endpoint management

Vendor Homepage

www.asus.com/motherboards-components/motherboards/csm/prime-b650m-a-ii-csm/

Model

PRIME B650M-A II-CSM

Chipset

AMD B650

Socket

SAM5

Form Factor

Micro-ATX

Memory type

DDR5

Frequency speed

4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7600 MHz

Memory slots

4

M.2

2

PCI-Express 4.0 16x

2

Audio port

3

DisplayPort

1

HDMI

1

PS/2

1

RJ45

1

USB 2.0

Yes

USB 3.2

Yes

VGA

1

SATA

Yes

Integrated video

Depending on CPU

Integrated audio

Yes

Integrated LAN

2.5 Gigabit

RAID

SATA 0, 1, 10; PCIe 0, 1, 10

TPM

Header

Included Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x Screw Package for M.2 SSD
Documentation
1 x ACC Express Activation Key Card
1 x User guide

Units per Shipping Box

10

Shipping Box Depth

56.5 cm

Shipping Box Height

30 cm

Shipping Box Weight

13.5 kg

Shipping Box Width

36.5 cm

Unit Calculated Volume

0.006187 cubm

Product Net Weight

0.7 kg

Unit Calculated Weight

1.35 kg

Unit Box Width

0.275

Unit Box Length

0.28

Unit Box Height

0.07

Full Description Line

AMD B650|SAM5|Micro-ATX|DDR5|7600/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|2xPCI-Express 4.0 16x|2xM.2|1xVGA|1xHDMI|1xDisplayPort|4xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|Audio|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; PCIe 0, 1, 10|TPM Header

Category Code

MBA
