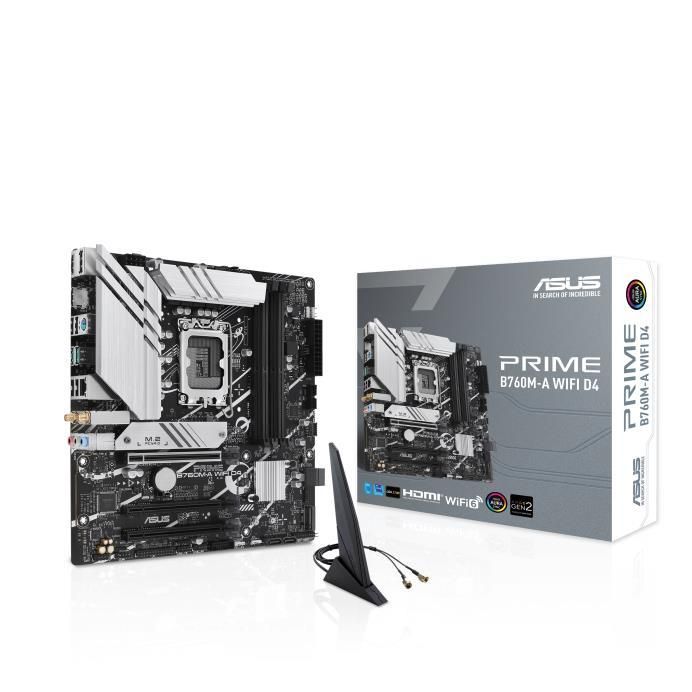

Mainboard|ASUS|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR4|Memory slots 4|3xPCI-Express 4.0 16x|2xM.2|2xHDMI|1xDisplayPort|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|PRIMEB760M-AWIFID4

Intel® B760 (LGA 1700) mATX motherboard, PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, Dual HDMI®, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, Aura Sync

• Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
• Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
• Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

Description

Intel® B760 (LGA 1700) mATX motherboard, PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, Dual HDMI®, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, Aura Sync

• Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
• Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
• Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

Vendor Homepage

www.asus.com/motherboards-components/motherboards/prime/prime-b760m-a-wifi-d4/

Category Code

MBI

Unit Box Height

0.07

Unit Box Length

0.28

Unit Box Width

0.275

M.2

2

PCI-Express 4.0 16x

3

RJ45

1

USB 3.2

Да

Аудио порт

3

Выход DisplayPort

1

Выход HDMI

2

Наличие PS/2

1

Наличие USB 2.0

Да

Bluetooth

Да

Наличие SATA

Да

Наличие WiFi

Да

Модель

PRIME B760M-A WIFI D4

Чипсет

Intel B760 Express

Socket

LGA1700

Форм-фактор

Micro-ATX

Тип оперативной памяти

DDR4

Частота работы оперативной памяти

2133/2400/2666/2800/2933/3000/3200/3333/3400/3466/3600/3733/4000/4266/4600/4800/5000/5066/5333 МГц

Количество слотов памяти

4 слота

Встроенная видео карта

Depending on CPU

Встроенный сетевой адаптер

2.5 Gigabit

Встроенная звуковая карта

Да

RAID

SATA 0, 1, 5, 10

TPM

Header

Количество в транспортной упаковке

10

Объем

0.006259 м3

Вес без упаковки

1 кг

Вес в упаковке

1.58 кг
