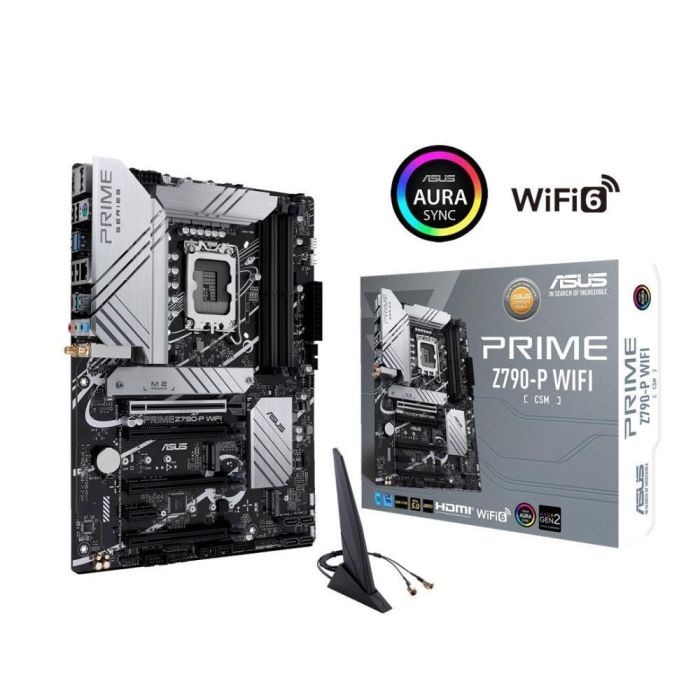

Mainboard|ASUS|Intel Z790|LGA1700|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 1x|3xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|3xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|PRIMEZ790-PWIFI

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-P WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

Description

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-P WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

Vendor Homepage

www.asus.com/Motherboards-Components/Motherboards/PRIME/PRIME-Z790-P-WIFI/

Model

PRIME Z790-P WIFI

Chipset

Intel Z790

Socket

LGA1700

Form Factor

ATX

Memory type

DDR5

Frequency speed

4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz

Memory slots

4

M.2

3

PCI-Express 3.0 1x

1

PCI-Express 4.0 16x

3

PCI-Express 5.0 16x

1

Audio port

3

DisplayPort

1

HDMI

1

PS/2

1

RJ45

1

USB 2.0

Yes

USB 3.2

Yes

USB-C

1

Bluetooth

Yes

SATA 3.0

Yes

WiFi

Yes

Integrated video

Depending on CPU

Integrated LAN

2.5 Gigabit

Integrated audio

Yes

RAID

SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10

Included Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 Rubber Package
2 x Screw packages for M.2 SSD
Documentation
1 x User guide

Units per Shipping Box

5

Shipping Box Depth

36.5 cm

Shipping Box Height

30 cm

Shipping Box Weight

9.25 kg

Shipping Box Width

36.5 cm

Unit Calculated Volume

0.007994 cubm

Product Net Weight

1 kg

Unit Calculated Weight

1.85 kg

CnCode

84733020

Unit Box Width

0.275

Unit Box Length

0.345

Unit Box Height

0.07

Full Description Line

Intel Z790|LGA1700|ATX|DDR5|7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|1xPCI-Express 3.0 1x|3xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|3xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|USB 2.0|USB 3.2|Bluetooth|WiFi|SATA 3.0|Video Depending on CPU|LAN 2.5 Gigabit|Audio|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10

Category Code

MBI
