Mainboard|GIGABYTE|AMD A520|SAM4|Micro-ATX|Memory DDR4|Memory slots 2|2xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|1x15pin D-sub|1xDVI-D|1xHDMI|2xAV-In|1xAV-out|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|A520MS2H1.3

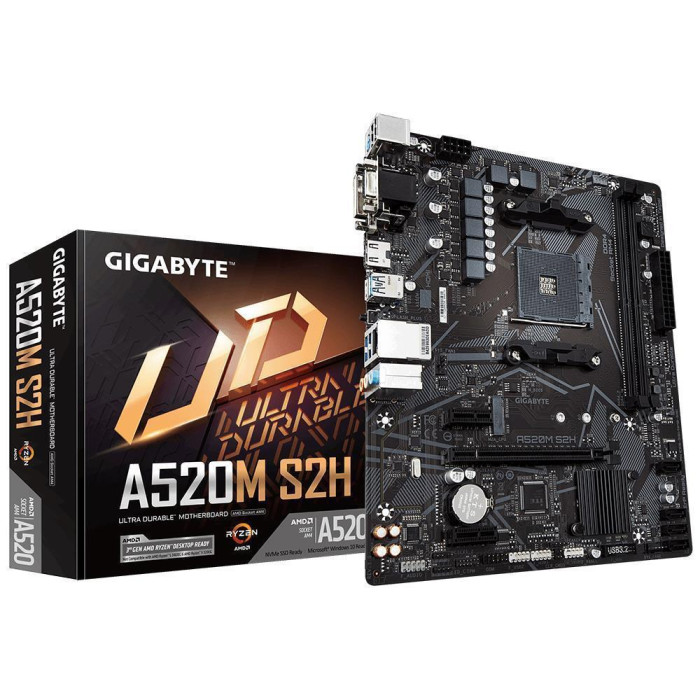

GIGABYTE A520M S2H 1.3

AMD A520 Ultra Durable Motherboard with Pure Digital VRM Solution, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4 M.2, RGB FUSION 2.0, Smart Fan 5, Q-Flash Plus, Anti-Sulfur Resistors Design

+ Supports AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
+ Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
+ 4+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
+ Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
+ GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
+ HDMI, DVI-D, D-sub Ports for Multiple Display
+ RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
+ Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
+ Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
+ Anti-Sulfur Resistors Design

Description

GIGABYTE A520M S2H 1.3

AMD A520 Ultra Durable Motherboard with Pure Digital VRM Solution, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4 M.2, RGB FUSION 2.0, Smart Fan 5, Q-Flash Plus, Anti-Sulfur Resistors Design

+ Supports AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
+ Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
+ 4+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
+ Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
+ GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
+ HDMI, DVI-D, D-sub Ports for Multiple Display
+ RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
+ Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
+ Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
+ Anti-Sulfur Resistors Design

Vendor Homepage

www.gigabyte.com/Motherboard/A520M-S2H-rev-10#kf

Model

A520M S2H 1.3

Chipset

AMD A520

Socket

SAM4

Form Factor

Micro-ATX

Memory type

DDR4

Frequency speed

2133/2400/2666/2933/3200/3333/3600/4000/4400/4600/4866/5000/5100 MHz

Memory slots

2

M.2

1

PCI-Express 3.0 16x

1

PCI-Express 3.0 1x

2

15pin D-sub

1

AV-In

2

AV-out

1

DVI-D

1

HDMI

1

PS/2

1

RJ45

1

USB 2.0

2

USB 3.2

4

SATA

Yes

Integrated video

Depending on CPU

Integrated audio

Realtek ALC887

Integrated LAN

Realtek (Gigabit)

RAID

SATA 0, 1, 10

TPM

Header

Units per Shipping Box

10

Shipping Box Depth

56.5 cm

Shipping Box Height

26 cm

Shipping Box Weight

7.94 kg

Shipping Box Width

29 cm

Unit Calculated Volume

0.00426 cubm

Product Net Weight

0.6 kg

Unit Calculated Weight

0.794 kg

Unit Box Width

0.05

Unit Box Length

0.265

Unit Box Height

0.235

Full Description Line

AMD A520|SAM4|Micro-ATX|DDR4|5100/5000/4866/4600/4400/4000/3600/3333/3200/2933/2666/2400/2133 MHz|Memory slots 2|2xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|1x15pin D-sub|1xDVI-D|1xHDMI|2xAV-In|1xAV-out|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|SATA|Video Depending on CPU|Audio Realtek ALC887|LAN Realtek (Gigabit)|RAID SATA 0, 1, 10|TPM Header

Category Code

MBA
