Mainboard|GIGABYTE|AMD B650|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 16x|1xPCI-Express 3.0 1x|3xM.2|1xHDMI|1xDisplayPort|3xUSB 2.0|4xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|B650GAMINGXAXV21.2

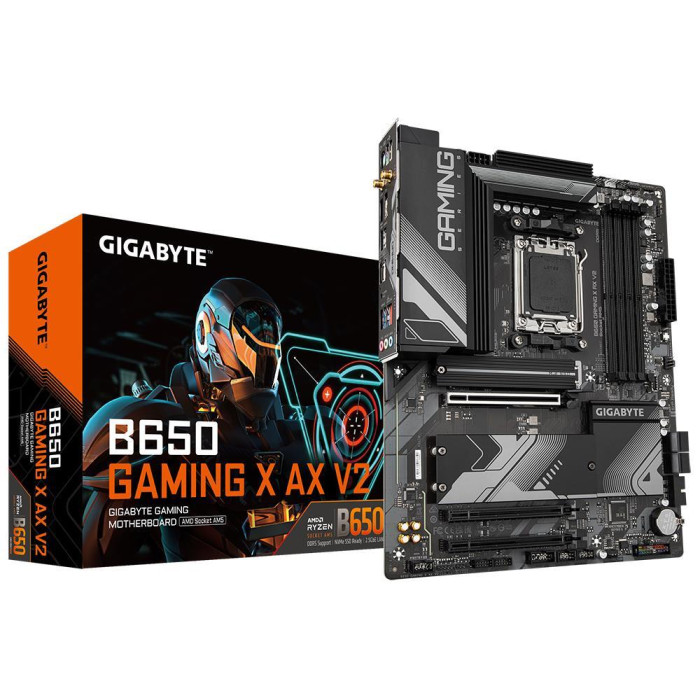

GIGABYTE B650 GAMING X AX V2


AMD Socket AM5

Supports AMD Ryzen 7000/ Ryzen 8000 Series Processors


Unparalleled Performance

Direct 8+2+2 Phases Digital VRM Solution


Dual Channel DDR5

4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support


SuperSpeed Storage

1*PCIe 5.0 x4 + 2*PCIe 4.0 x4 M.2 Connectors


Advanced Thermal Design & M.2 Thermal Guard

To Ensure VRM Power Stability & 25110 M.2 SSD Performance


EZ-Latch

PCIe x16 Slot with Quick Release Design


Fast Networks

2.5GbE LAN & Wi-Fi 6E 802.11ax


Extended Connectivity

DP, HDMI, Rear USB-C 10Gb/s, Front USB-C 20Gb/s


Smart Fan 6

Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP


Q-Flash Plus

Update BIOS Without Installing the CPU, Memory and Graphics Card


Durable Performance

GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.


Digital VRM Design

8+2+2 Phases Digital VRM Solution

GIGABYTE UD series motherboards use a 8+2+2 phases digital PWM design to support AMD's new generation CPU by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.


DDR5 EXPO & XMP Overclocking Up to 8000 and Beyond

GIGABYTE is offering a tested and proven platform that the memory overclocking capability is able up to 8000 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO/Intel XMP capable, the EXPO/XMP function is activated and enabled on their GIGABYTE motherboard.


Fully Covered MOSFET Heatsink

3X Large Surface

Increased surface area up to 3X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs.

Real One-piece Build

TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors' multi-piece design.


Future Connectivity

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

802.11ax Wi-Fi 6E

The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.


2.5GbE LAN

Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.


PCIe 4.0 Hardware Design

GIGABYTE B650 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.


Hi-Fi Audio

High-End Audio Capacitors. GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.


Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Description

GIGABYTE B650 GAMING X AX V2


AMD Socket AM5

Supports AMD Ryzen 7000/ Ryzen 8000 Series Processors


Unparalleled Performance

Direct 8+2+2 Phases Digital VRM Solution


Dual Channel DDR5

4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support


SuperSpeed Storage

1*PCIe 5.0 x4 + 2*PCIe 4.0 x4 M.2 Connectors


Advanced Thermal Design & M.2 Thermal Guard

To Ensure VRM Power Stability & 25110 M.2 SSD Performance


EZ-Latch

PCIe x16 Slot with Quick Release Design


Fast Networks

2.5GbE LAN & Wi-Fi 6E 802.11ax


Extended Connectivity

DP, HDMI, Rear USB-C 10Gb/s, Front USB-C 20Gb/s


Smart Fan 6

Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP


Q-Flash Plus

Update BIOS Without Installing the CPU, Memory and Graphics Card


Durable Performance

GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.


Digital VRM Design

8+2+2 Phases Digital VRM Solution

GIGABYTE UD series motherboards use a 8+2+2 phases digital PWM design to support AMD's new generation CPU by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.


DDR5 EXPO & XMP Overclocking Up to 8000 and Beyond

GIGABYTE is offering a tested and proven platform that the memory overclocking capability is able up to 8000 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO/Intel XMP capable, the EXPO/XMP function is activated and enabled on their GIGABYTE motherboard.


Fully Covered MOSFET Heatsink

3X Large Surface

Increased surface area up to 3X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs.

Real One-piece Build

TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors' multi-piece design.


Future Connectivity

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

802.11ax Wi-Fi 6E

The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.


2.5GbE LAN

Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.


PCIe 4.0 Hardware Design

GIGABYTE B650 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.


Hi-Fi Audio

High-End Audio Capacitors. GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.


Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Vendor Homepage

www.gigabyte.com/Motherboard/B650-GAMING-X-AX-V2-rev-1x#kf

Category Code

MBA

CnCode

84733020

Unit Box Height

0.334

Unit Box Length

0.271

Unit Box Width

0.081

M.2

3

PCI-Express 16x

1

PCI-Express 3.0 1x

1

Audio port

3

DisplayPort

1

HDMI

1

PS/2

1

RJ45

1

USB 2.0

Yes

USB 3.2

Yes

USB-C

Yes

Bluetooth

Yes

SATA

Yes

Serial

Yes

WiFi

Yes

Model

B650 GAMING X AX V2 1.2

Chipset

AMD B650

Socket

SAM5

Form Factor

ATX

Memory type

DDR5

Frequency speed

4400/4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600/7800/8000 MHz

Memory slots

4

Integrated video

Depending on CPU

Integrated LAN

2.5 Gigabit

RAID

SATA 0, 1, 10; NVMe 0, 1, 10

TPM

Header

Units per Shipping Box

8

Unit Calculated Volume

0.0102 cubm

Product Net Weight

2 kg

Unit Calculated Weight

2.14 kg
