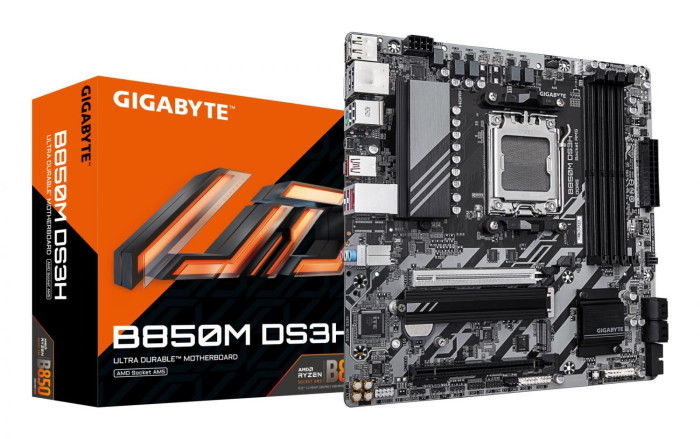

Mainboard|GIGABYTE|AMD B850|Socket AM5|micro ATX|RAM DDR5-SDRAM|4xSlots|2xNumber of M.2 (M) slots|B850MDS3H1.2

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

• Twin 8+2+2 Phases Digital VRM with DrMOS
• Dual Channel DDR5：4*DIMMs
• PCIe Gen5 x16 with PCIe UD Slot & EZ-Latch
• M.2 Gen5 with M.2 Heatsink, MOSFET Heatsink
• 2.5GbE LAN, Q-Flash Plus

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

• Twin 8+2+2 Phases Digital VRM with DrMOS
• Dual Channel DDR5：4*DIMMs
• PCIe Gen5 x16 with PCIe UD Slot & EZ-Latch
• M.2 Gen5 with M.2 Heatsink, MOSFET Heatsink
• 2.5GbE LAN, Q-Flash Plus

Summary

GIGABYTE B850M DS3H Motherboard - AMD Ryzen 9000 Series CPUs, 16+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5 LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet

Vendor Homepage

https://www.gigabyte.com/

Category Code

MBA

CnCode

84733020

Unit Box Height

0.265

Unit Box Length

0.27

Unit Box Width

0.07

Audio chip

Realtek ALC897

Audio output channels

7.1 channels

Component for

PC

Motherboard chipset

AMD B850

Motherboard chipset family

AMD

Motherboard form factor

micro ATX

PC health monitoring

Fan/Temperature/Voltage/Water cooling

Power source type

ATX

Product colour

Brown

Windows operating systems supported

Windows 10 x64/Windows 11 x64

Compatible processor series

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Processor manufacturer

AMD

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

ECC сompatibility

Non-ECC

Maximum internal memory

256 GB

Maximum internal memory per slot

64 GB

Memory channels

Dual-channel

Memory slots type

DIMM

Number of memory slots

4

Supported memory clock speed (max)

8200 MHz

Supported memory clock speeds

4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000/8200 MHz

Supported memory types

DDR5-SDRAM

Unbuffered memory

Yes

Number of HDDs supported

4

Number of storage drives supported

6

RAID levels

0/1/10

RAID support

Yes

Supported storage drive interfaces

M.2,SATA III

Supported storage drive types

HDD & SSD

DirectX version

12.0

HDCP

Yes

Maximum resolution

4096 x 2160 pixels

Parallel processing technology support

Not supported

12V power connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Front panel audio connector

Yes

Front panel connector

Yes

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

1

Number of RGB LED pin headers

4

Number of SATA III connectors

4

Peripheral (Molex) power connectors (4-pin)

1

RGB LED pin header

Yes

Serial port headers

1

Total number of SATA connectors

4

TPM connector

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

DisplayPort version

2.1

DisplayPorts quantity

2

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

HDMI version

2.1

Headphone outputs

1

Microphone in

Yes

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

WiFi-AP antenna jack

2

Ethernet interface type

2.5 Gigabit Ethernet

Ethernet LAN

Yes

Wi-Fi

No

1st M.2 highest PCI Express generation

5.0

1st M.2 largest key size

25110

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

25110

Number of M.2 (M) slots

2

PCI Express x16 (Gen 3.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

ACPI version

5.0

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Clear CMOS button

Yes

Clear CMOS jumper

Yes

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Battery weight

3 g

Country of origin

China

Lithium weight per battery

0.07 g

Number of battery cells

1

Package depth

268 mm

Package height

68 mm

Package weight

1337 g

Package width

270 mm

Products per shipping (inner) case

1 pc(s)

Depth

244 mm

Height

35 mm

Width

244 mm

Antenna included

Yes

Batteries included

Yes

Bundled software

Norton Internet Security (OEM version)
LAN bandwidth management software

Screws included

Yes

Warranty period

3 year(s)

Weight

1135 g

Units per Pallet

0

Units per Shipping Box

10

Unit Calculated Volume

0.006161 cubm

Unit Calculated Weight

1.25 kg
