Mainboard|GIGABYTE|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR4|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1x15pin D-sub|1xHDMI|1xDisplayPort|6xUSB 2.0|5xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|B760MD3HPDDR4

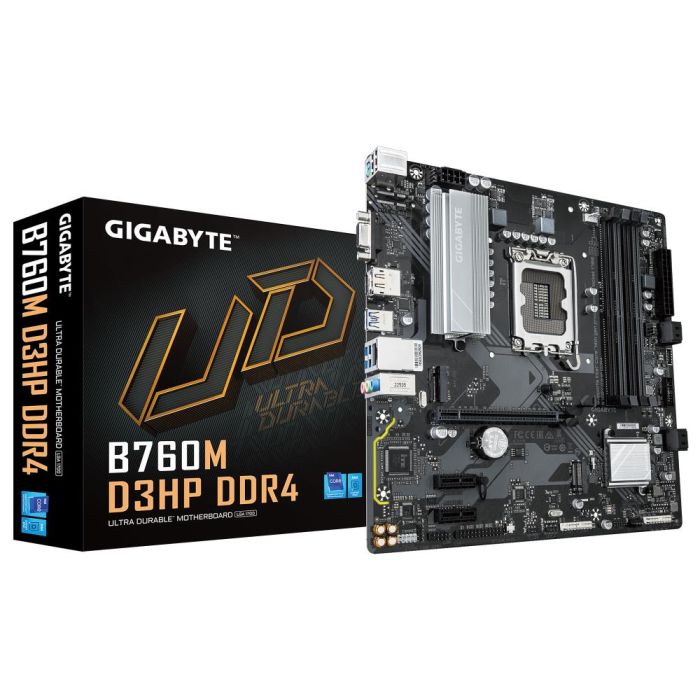

GIGABYTE B760M D3HP DDR4

Supports Intel Core 14th/ 13th /12th processors


Unparalleled Performance

Hybrid 4+1+1 Phases Digital VRM Solution


Dual Channel DDR4

4* DIMMs XMP Memory Module Support


Next Generation Storage

2* PCIe 4.0 x4 M.2 Connectors


Fast Networks

GbE LAN


Extended Connectivity

Front USB-C 5Gb/s, DP, HDMI, D-Sub


Smart Fan 6

Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP


Q-Flash Plus

Update BIOS Without Installing the CPU, Memory and Graphics Card

Description

GIGABYTE B760M D3HP DDR4

Supports Intel Core 14th/ 13th /12th processors


Unparalleled Performance

Hybrid 4+1+1 Phases Digital VRM Solution


Dual Channel DDR4

4* DIMMs XMP Memory Module Support


Next Generation Storage

2* PCIe 4.0 x4 M.2 Connectors


Fast Networks

GbE LAN


Extended Connectivity

Front USB-C 5Gb/s, DP, HDMI, D-Sub


Smart Fan 6

Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP


Q-Flash Plus

Update BIOS Without Installing the CPU, Memory and Graphics Card

Vendor Homepage

www.gigabyte.com/Motherboard/B760M-D3HP-DDR4#kf

Model

B760M D3HP DDR4

Chipset

Intel B760 Express

Socket

LGA1700

Form Factor

Micro-ATX

Memory type

DDR4

Frequency speed

2133/2400/2666/2933/3000/3200/3300/3333/3400/3466/3666/3733/3800/3866/4000/4133/4266/4300/4400/4500/4600/4700/4800/4933/5000/5133/5333 MHz

Memory slots

4

M.2

2

PCI-Express 3.0 1x

2

PCI-Express 4.0 16x

1

15pin D-sub

1

Audio port

3

DisplayPort

1

HDMI

1

PS/2

1

RJ45

1

USB 2.0

Yes

USB 3.2

Yes

USB-C

Yes

SATA

Yes

Integrated video

Depending on CPU

Integrated LAN

Gigabit

Integrated audio

Yes

RAID

SATA 0, 1, 5, 10

TPM

Header

Units per Shipping Box

10

Shipping Box Depth

57.5 cm

Shipping Box Height

29 cm

Shipping Box Weight

9.93 kg

Shipping Box Width

29 cm

Unit Calculated Volume

0.004836 cubm

Product Net Weight

0.7 kg

Unit Calculated Weight

0.993 kg

Unit Box Width

0.055

Unit Box Length

0.27

Unit Box Height

0.275

Full Description Line

Intel B760 Express|LGA1700|Micro-ATX|DDR4|5333/5133/5000/4933/4800/4700/4600/4500/4400/4300/4266/4133/4000/3866/3800/3733/3666/3466/3400/3333/3300/3200/3000/2933/2666/2400/2133 MHz|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1x15pin D-sub|1xHDMI|1xDisplayPort|6xUSB 2.0|5xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Video Depending on CPU|LAN Gigabit|Audio|RAID SATA 0, 1, 5, 10|TPM Header

Category Code

MBI
