Mainboard|GIGABYTE|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1x15pin D-sub|1xHDMI|2xDisplayPort|2xUSB 2.0|3xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|B760MDS3H

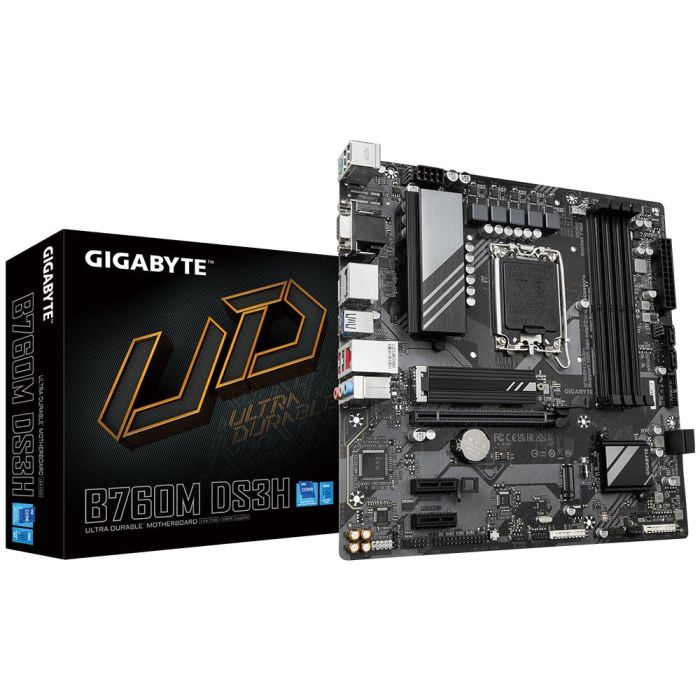

GIGABYTE B760M DS3H


Intel Socket LGA 1700

Support 13th and 12th Gen Series Processors


Unparalleled Performance

Hybrid 6+2+1 Phases Digital VRM Solution


Dual Channel DDR5

4*DIMMs XMP Memory Module Support


Next Generation Storage

2*PCIe 4.0 x4 M.2 Connectors


M.2 Thermal Guard

To Ensure M.2 SSD Performance


EZ-Latch

PCIe 4.0x16 Slot with Quick Release Design


Fast Networks

2.5GbE LAN


Extended Connectivity

Rear USB-C 10Gb/s, DP, HDMI


Smart Fan 6

Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP


Q-Flash Plus

Update BIOS Without Installing the CPU, Memory and Graphics Card

Description

GIGABYTE B760M DS3H


Intel Socket LGA 1700

Support 13th and 12th Gen Series Processors


Unparalleled Performance

Hybrid 6+2+1 Phases Digital VRM Solution


Dual Channel DDR5

4*DIMMs XMP Memory Module Support


Next Generation Storage

2*PCIe 4.0 x4 M.2 Connectors


M.2 Thermal Guard

To Ensure M.2 SSD Performance


EZ-Latch

PCIe 4.0x16 Slot with Quick Release Design


Fast Networks

2.5GbE LAN


Extended Connectivity

Rear USB-C 10Gb/s, DP, HDMI


Smart Fan 6

Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP


Q-Flash Plus

Update BIOS Without Installing the CPU, Memory and Graphics Card

Vendor Homepage

www.gigabyte.com/Motherboard/B760M-DS3H-rev-10#kf

Model

B760M DS3H

Chipset

Intel B760 Express

Socket

LGA1700

Form Factor

Micro-ATX

Memory type

DDR5

Frequency speed

4000/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600 MHz

Memory slots

4

M.2

2

PCI-Express 3.0 1x

2

PCI-Express 4.0 16x

1

15pin D-sub

1

Audio port

3

DisplayPort

2

HDMI

1

PS/2

1

RJ45

1

USB 2.0

Yes

USB 3.2

Yes

USB-C

1

SATA

Yes

Integrated video

Depending on CPU

Integrated LAN

2.5 Gigabit

Integrated audio

Yes

RAID

SATA 0, 1, 5, 10

TPM

Header

Units per Shipping Box

1

Shipping Box Depth

27 cm

Shipping Box Height

5.5 cm

Shipping Box Weight

0.97 kg

Shipping Box Width

27 cm

Unit Calculated Volume

0.00401 cubm

Product Net Weight

0.75 kg

Unit Calculated Weight

0.97 kg

Unit Box Width

0.27

Unit Box Length

0.27

Unit Box Height

0.055

Full Description Line

Intel B760 Express|LGA1700|Micro-ATX|DDR5|7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/4800/4000 MHz|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1x15pin D-sub|1xHDMI|2xDisplayPort|2xUSB 2.0|3xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|LAN 2.5 Gigabit|Audio|RAID SATA 0, 1, 5, 10|TPM Header

Category Code

MBI
