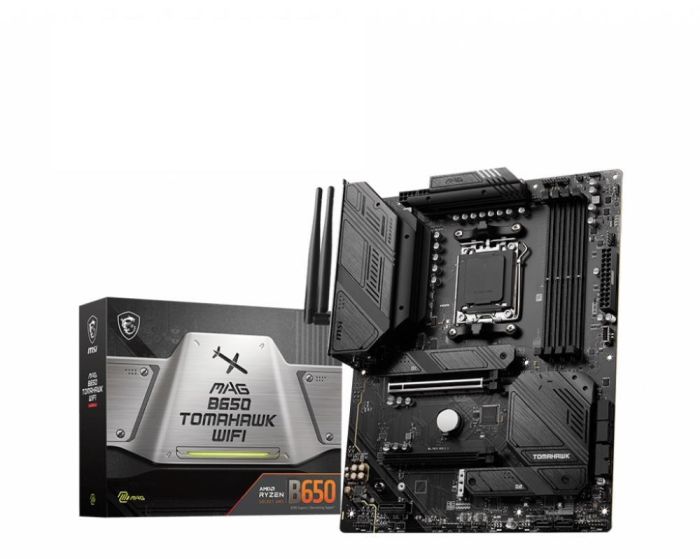

Mainboard|MSI|AMD B650|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 1x|2xPCI-Express 16x|3xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|7xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|5xAudio port|MAGB650TOMAHAWKWIFI

- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory, up to 6400+(OC) MHz
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
- Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

Description

- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory, up to 6400+(OC) MHz
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
- Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

Vendor Homepage

www.msi.com/Motherboard/MAG-B650-TOMAHAWK-WIFI/Overview

Model

MAG B650 TOMAHAWK WIFI

Chipset

AMD B650

Socket

SAM5

Form Factor

ATX

Memory type

DDR5

Frequency speed

4800/5000/5200/5400/5600/5800/6000/6200/6400 MHz

Memory slots

4

M.2

3

PCI-Express 16x

2

PCI-Express 1x

1

Audio port

5

DisplayPort

1

HDMI

1

Optical S/PDIF

1

RJ45

1

USB 2.0

Yes

USB 3.2

Yes

USB-C

1

Bluetooth

Yes

SATA 3.0

Yes

WiFi

Yes

Integrated video

Depending on CPU

Integrated audio

Realtek ALC4080

Integrated LAN

2.5 Gigabit

RAID

SATA 0, 1, 10

TPM

Header

Units per Shipping Box

1

Shipping Box Depth

34.5 cm

Shipping Box Height

7 cm

Shipping Box Weight

1.76 kg

Shipping Box Width

27 cm

Unit Calculated Volume

0.006521 cubm

Product Net Weight

1.3 kg

Unit Calculated Weight

1.76 kg

Unit Box Width

0.27

Unit Box Length

0.345

Unit Box Height

0.07

Full Description Line

AMD B650|SAM5|ATX|DDR5|6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|1xPCI-Express 1x|2xPCI-Express 16x|3xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|7xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|5xAudio port|USB 2.0|USB 3.2|Bluetooth|WiFi|SATA 3.0|Video Depending on CPU|Audio Realtek ALC4080|LAN 2.5 Gigabit|RAID SATA 0, 1, 10|TPM Header

Category Code

MBA
